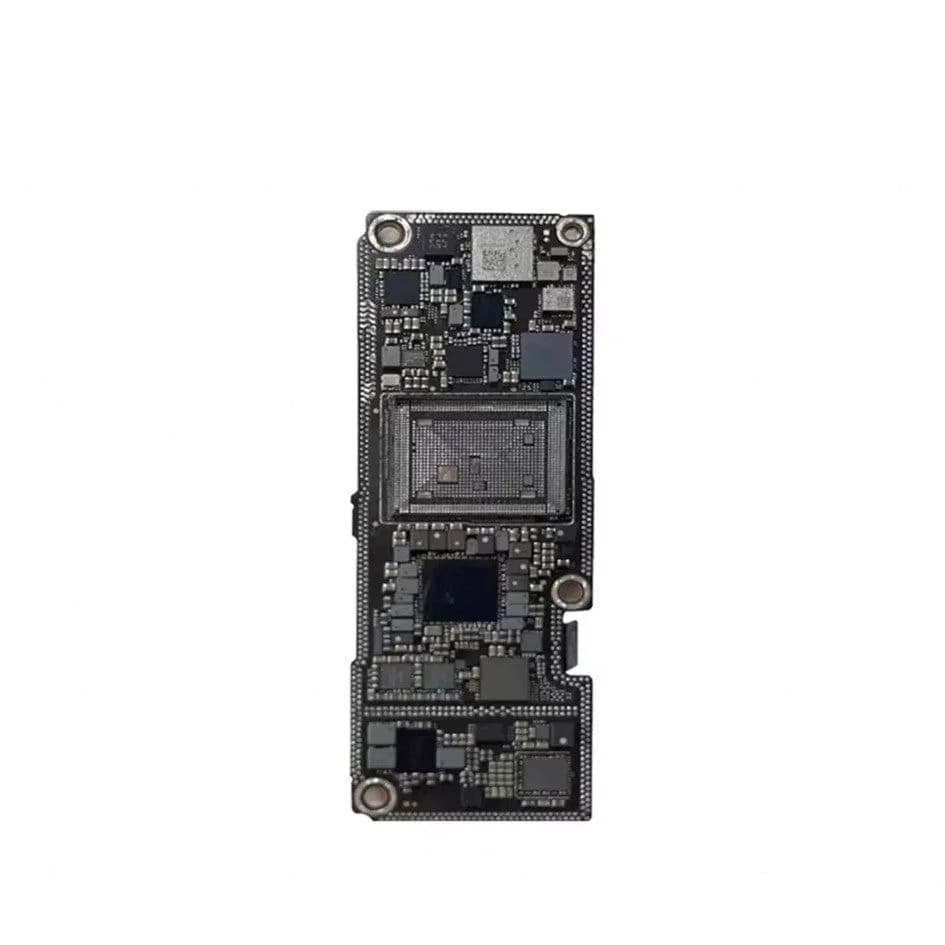

iPhone 15 Pro CNC Donor Board

Name: iPhone 15 Pro CNC Donor Board
Brand: Apple
SKU: IP91052-1
Price: 23.27 USD

$23.27

per unit

Option

Upper Layer (Without NAND) - US$23.27Upper Layer (Without NAND) - EU$23.27Lower Layer - US Version$7.34Lower Layer - EU Version$8.57

Volume pricing
Quantity	Unit price	Saving
	$23.27
	$22.11	−5%
	$20.94	−10%

Selected SKU IP91052-1

Ships from Shenzhen, China. Check rates for your country
No sales tax added at checkout
30-day returns on unused parts. Details
Ask about fit before ordering

Shipping weight 0.05 kg

Compatible with 1 model

Match the model number printed on the device (Settings → About, or on the back) before ordering.

iPhone 15 ProA2848, A3101, A3104, A3102

Details

The iPhone 15 Pro donor board is one of the few in this range where you can choose a region for the upper layer as well as the lower one. Both halves come in US and EU versions, and the upper layer is supplied without NAND.

It's a CNC-machined PCB for rebuilding iPhone 15 Pro boards with severe damage, and for data recovery when the original board can't be repaired. It isn't a complete motherboard.

Where it helps

Burnt sections under failed power components.
Broken internal vias.
Pads lost during heavy rework.
Phones that need data recovered after board failure.

Preparing for the transfer

Confirm the phone's region and order matching halves. List the parts to move and the order you'll move them in, starting with the most heat-sensitive ones.

Work with a preheater and fresh stencils. Rejoin the board, check the current on a bench supply, and test charging over USB-C, display and cellular before final assembly. A short soak test with the phone idling on the bench reveals marginal joints that a quick power-up would miss, so budget that time into your quote.
