SN2012027-A12 Universal USB IC for iPhone 15 / 15 Plus / 15 Pro / 15 Pro Max

1 / 9

Part

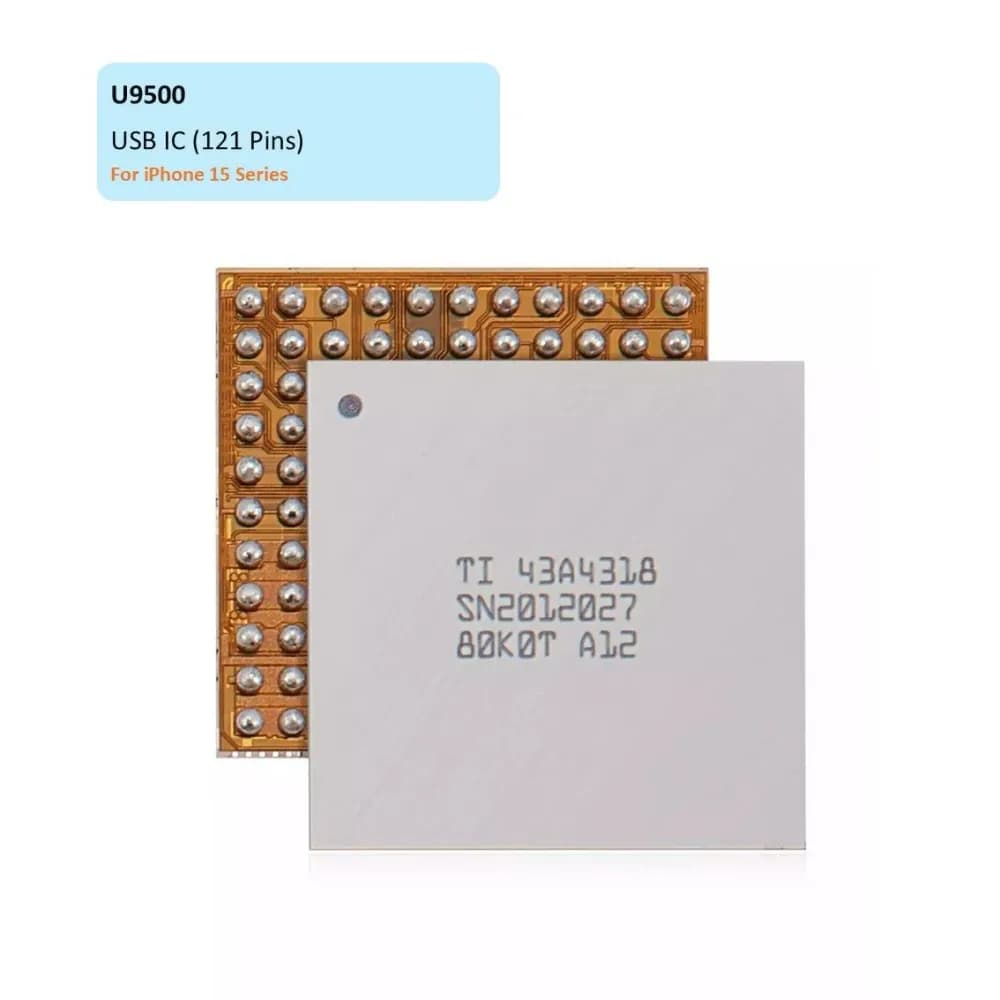

SN2012027-A12 Universal USB IC for iPhone 15 Series (121 Pin)

Apple · SKU IP70203 · Fits 4 models

$7.34

per unit
Volume pricing
QuantityUnit priceSaving
$7.34
$6.97−5%
$6.61−10%

Shipping weight 0.01 kg

Compatible with 4 models

Match the model number printed on the device (Settings → About, or on the back) before ordering.

Details

The SN2012027-A12 is sold as a universal, programmed USB IC for the iPhone 15 range, for cable charging or computer connection faults. It's a 121-pin chip listed for the 15, 15 Plus, 15 Pro and 15 Pro Max.

The listing says no programming is needed and the chip installs directly. Its body also mentions the iPhone 16 series, which conflicts with the title and specs, so treat that line as a copy error. On iPhone 15 boards, the USB-C controller sits at U9500 and is normally paired with an EEPROM, so make sure the part you're fitting is meant to work without the original pairing.

Signs it's needed

  • No charging by cable.

  • Computer doesn't detect the phone.

  • Charging fails while wireless works.

  • Touch failure alongside the charging fault.

Fitting notes

Rule out the port, cable and charger first. Separate the stacked board carefully, preheat and lift the original controller. Fit the new chip on fresh flux, rejoin the board and test cable charging, data and touch before closing the phone.

Specifications

ConditionNew
Part numberSN2012027-A12
Part typeUSB IC (programmed, per listing)
Pin count121
Compatible devicesiPhone 15, iPhone 15 Plus, iPhone 15 Pro, iPhone 15 Pro Max
Board locationU9500

Questions

Does it fit the iPhone 16?

The body mentions it, but the title and specs say iPhone 15; treat it as a copy error.

Does it need programming?

The listing says no.

How many pins?

121.
