XZZ Motherboard Layered Test Fixture for iPhone X, XS and XS Max

XZZ (Xinzhizao) · SKU XZ10002 · Fits 3 models

$94.79

per unit

Volume pricing
Quantity	Unit price	Saving
	$94.79
	$90.05	−5%
	$85.31	−10%

Ships from Shenzhen, China. Check rates for your country
No sales tax added at checkout
30-day returns on unused parts. Details
Ask about fit before ordering

Shipping weight 0.2 kg

Compatible with 3 models

Match the model number printed on the device (Settings → About, or on the back) before ordering.

iPhone XA1865, A1901, A1902
iPhone XSA1920, A2097, A2098, A2099, A2100
iPhone XS MaxA1921, A2101, A2102, A2103, A2104

Details

The iPhone X was the first iPhone with a stacked logic board, and the XS and XS Max kept the design. Those boards are now old enough that many arrive for data recovery or board repair, where testing each layer separately is often the quickest route to an answer.

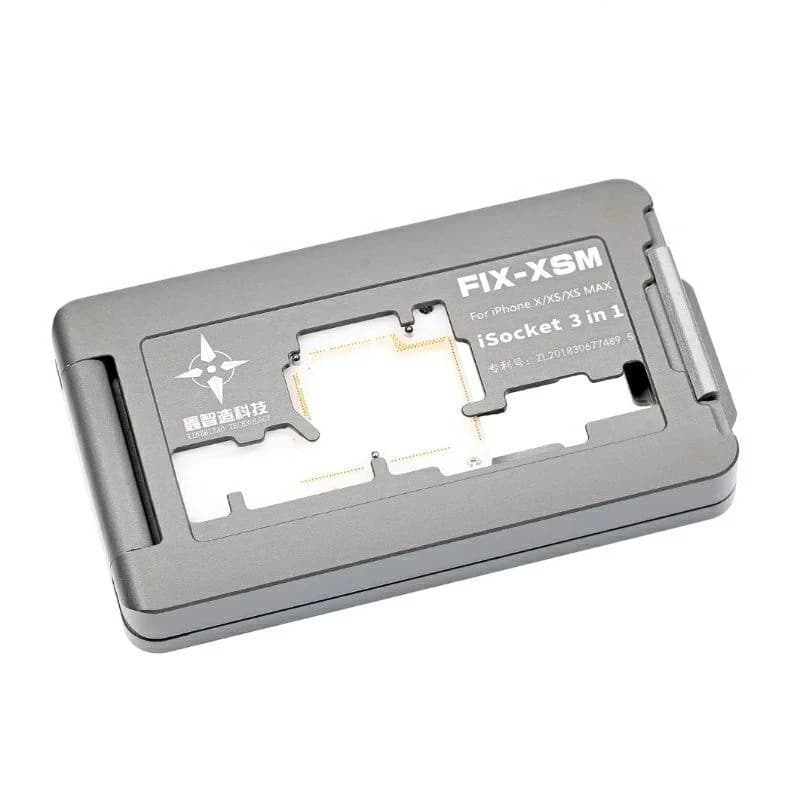

This layered test fixture from XZZ (Xinzhizao) is listed for the iPhone X, XS and XS Max. It connects the middle layer of the board through custom gold-plated spring probes on a high-temperature, corrosion-resistant base.

When the fixture is useful

An older iPhone that won't boot and holds data the owner wants back.
A separated board where the fault could be on either layer.
Checking a repaired layer before re-soldering the sandwich.
Swapping a damaged layer for a donor.

Practical notes

It measures 108 × 61 × 16 mm and weighs about 135 g. Clean the interposer area thoroughly before seating the board, since years of residue on an older board can keep the probes from seating.

Older boards are often fragile from previous repairs, so seat them gently and avoid repeated reseating where pads are already lifted.
