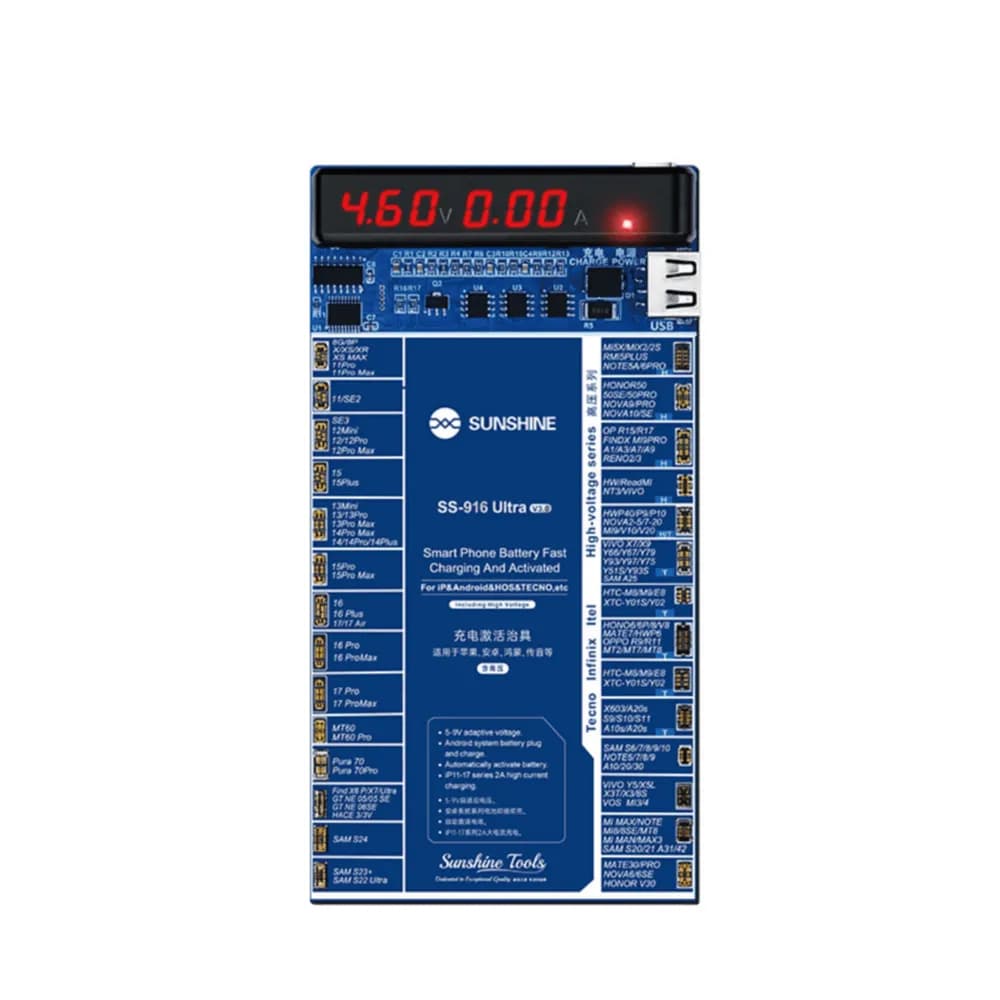

SUNSHINE SS-916 Ultra V3.0 iPhone/Android Charging Activation Fixture

When a phone won't charge, a technician needs to know whether the board's charging circuit is alive before ordering a port or battery. The SUNSHINE SS-916 Ultra is a fixture for charging activation and power testing on iPhone and Android boards.

The SS-916 Ultra V3.0 is a charging activation fixture from SUNSHINE. The listing describes charging activation, power-on testing and functional diagnosis on bare or separated boards, but doesn't name compatible models or describe how boards connect to it.

When the SS-916 Ultra helps

• A phone that shows no charging response.

• Telling a charging-circuit fault from a battery or port fault.

• Power-on testing after board repair.

• Repeated charge tests during chip-level work.

Before using it

Confirm compatibility with your board, since the listing gives no model list and notes that supported functions vary by phone. Check the fixture and board for damage before powering up, and secure the board so it can't move during testing.

Keep the fixture away from hot air and the iron during rework, disconnect power before changing connections and use ESD protection throughout.
