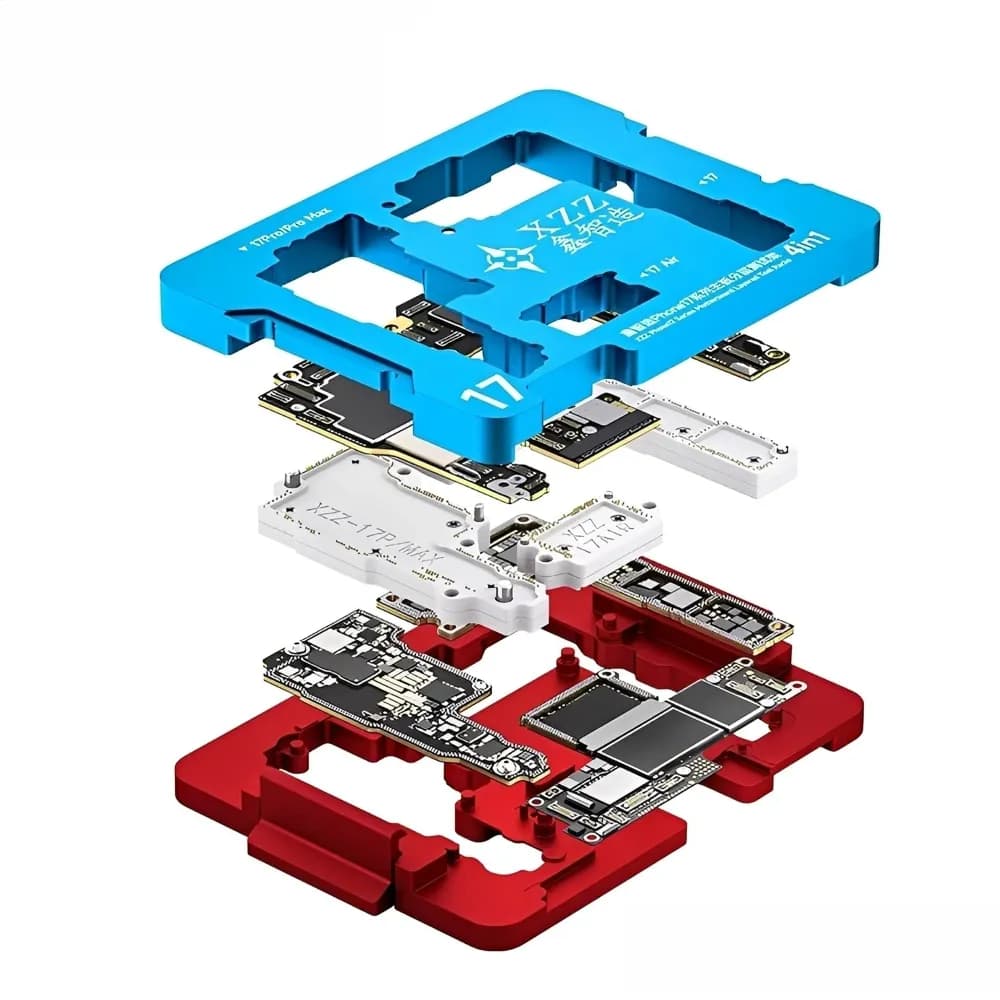

XZZ Motherboard Test Fixture for iPhone 17 Series

XZZ (Xinzhizao) · SKU XZ17001 · Fits 3 models

$179.00

per unit

Volume pricing
Quantity	Unit price	Saving
	$179.00
	$170.05	−5%
	$161.10	−10%

Ships from Shenzhen, China. Check rates for your country
No sales tax added at checkout
30-day returns on unused parts. Details
Ask about fit before ordering

Shipping weight 0.3 kg

Compatible with 3 models

Match the model number printed on the device (Settings → About, or on the back) before ordering.

iPhone 17A3258, A3519, A3521, A3520
iPhone AirA3260, A3516, A3518, A3517
iPhone 17 ProA3256, A3522, A3524, A3523

Details

Closing up an iPhone 17 only to find the board repair didn't hold is an expensive mistake. The XZZ fixture for the iPhone 17 series holds the split board in position so you can test it fully before final assembly.

This fixture from XZZ (Xinzhizao) is listed for the iPhone 17, 17 Pro, 17 Pro Max and iPhone Air. It makes a temporary connection between the logic board and signal board for power-on testing, current checks, basic function tests and data recovery. It measures 108 × 78 × 16 mm and weighs about 185 g.

When the fixture is needed

A split iPhone 17 board that won't power on.
Checking current consumption for a short or failed rail.
Verifying chip-level work before assembly.
Recovering data from a damaged board.

Setup, per the listing

Position the board correctly before tightening, then confirm the connection between logic board and signal board is secure. Connect the screen, battery flex and other accessories your procedure calls for, and watch the DC supply current and device functions during the test.

YCS also offers a 4-in-1 platform for the same models; compare the layouts in the photos before choosing.

Specifications

Brand	XZZ (Xinzhizao)
Model	iPhone 17 series fixture
Condition	New
Product type	Motherboard test fixture
Compatible devices	iPhone 17, iPhone 17 Pro, iPhone 17 Pro Max, iPhone Air
Dimensions	108 × 78 × 16 mm
Weight	185 g
