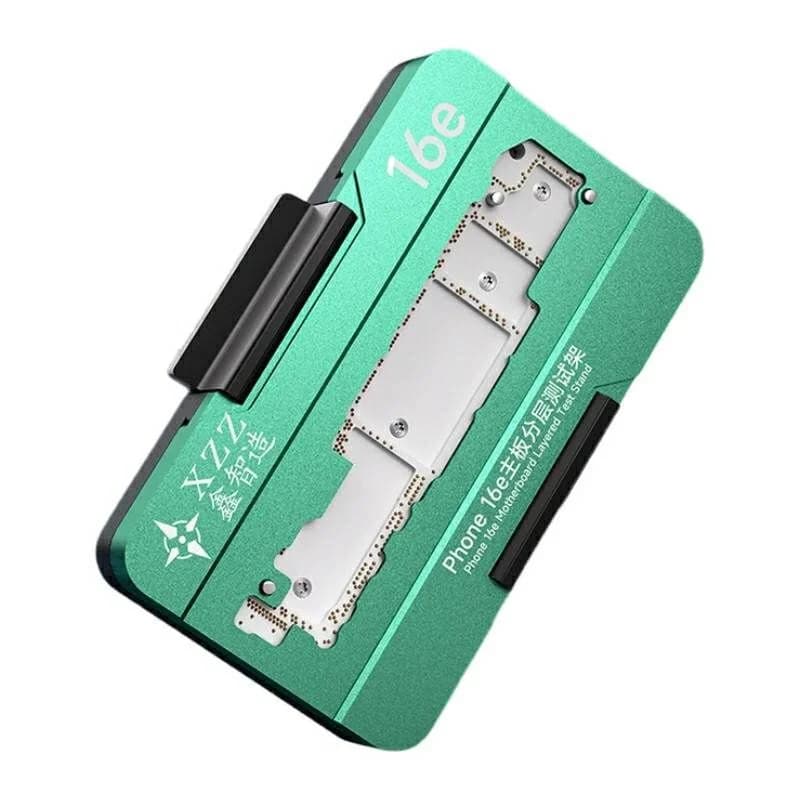

XZZ Motherboard Test Fixture for iPhone 16e

The iPhone 16e doesn't share its board with the rest of the iPhone 16 family, so a 16-series fixture won't do. XZZ makes this one specifically for 16e logic boards.

This fixture from XZZ (Xinzhizao) is built specifically for the iPhone 16e board. The listing describes a plug-and-play design, a stable power interface and support for a full function test covering boot, display, touch and communication. It measures 86 × 58 × 15 mm and weighs about 109 g.

When the 16e fixture is needed

• A 16e that won't boot after a drop or liquid damage.

• Board faults affecting display, touch or communication.

• Verifying a chip-level repair before reassembly.

• Data recovery from a damaged 16e.

Practical tips

Make sure the 16e board is clean and flat before connecting it, and work under magnification so nothing is misaligned. Run through boot, display, touch and communication checks in turn, so you know exactly which function fails.

If you also repair the other iPhone 16 models, you'll need XZZ's separate iPhone 16 series fixture for those, since their boards won't seat in this one.
