Apple Watch Series 8 (41mm) OLED Display Screen Assembly
Apple · SKU AW00017 · Fits 1 model
$61.57
per unit| Quantity | Unit price | Saving |
|---|---|---|
| $61.57 | ||
| $58.49 | −5% | |
| $55.41 | −10% |
Selected SKU AW00017
- Ships from Shenzhen, China. Check rates for your country
- No sales tax added at checkout
- 30-day returns on unused parts. Details
- Ask about fit before ordering
Shipping weight 0.05 kg
Compatible with 1 model
Match the model number printed on the device (Settings → About, or on the back) before ordering.
- Apple Watch Series 8A2770, A2771, A2772, A2773, A2857, A2774, A2775, A2858
Details
The Series 8 added temperature sensing and crash detection, and many owners wear it around the clock for sleep tracking and workouts. When the screen cracks or goes dark, most of that stops being useful: you can't read a workout, answer a message or check your rings.

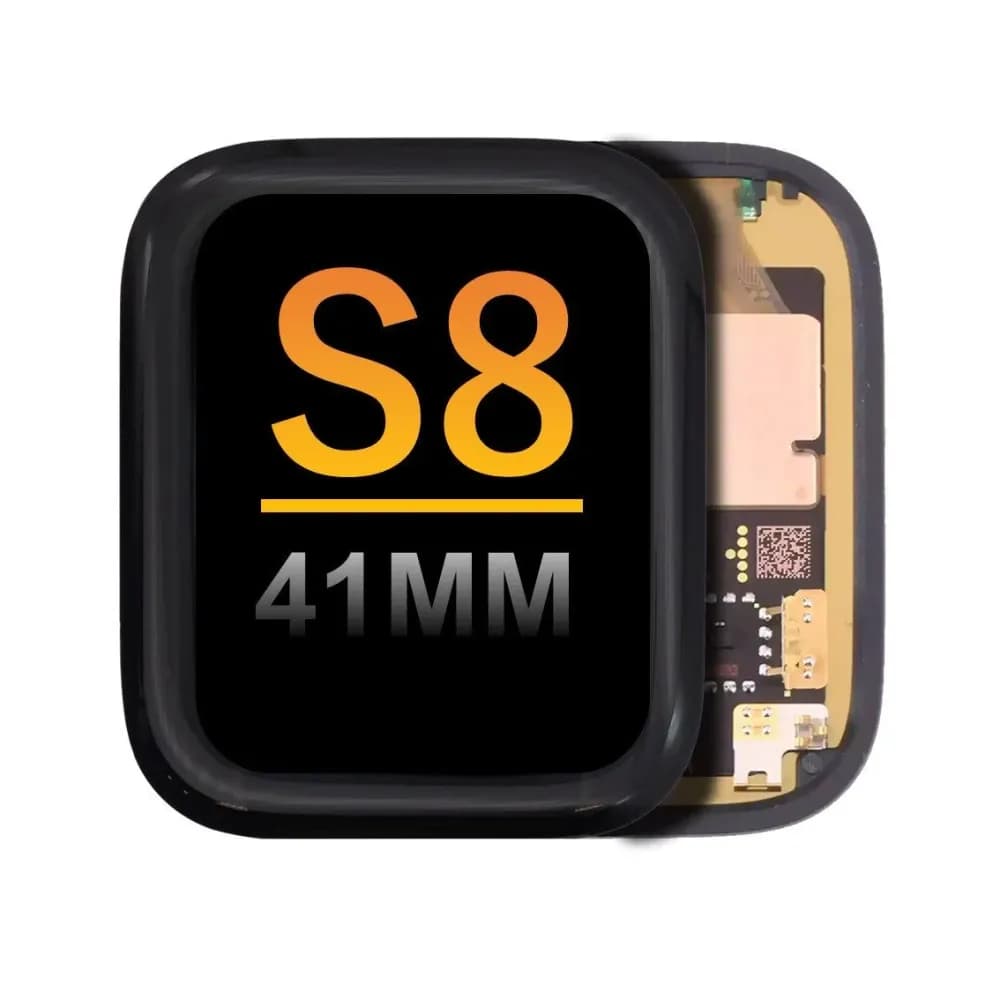

This OLED display screen assembly fits the 41mm Series 8. It's offered as OEM Pull, an Apple-made screen from a donor watch.
When the 41mm Series 8 screen needs replacing
Look for cracked or chipped glass, a display that stays dark while the watch still vibrates, touch that is dead or registers phantom taps, and lines or patches after a fall. A screen lifting at one edge usually points to a swollen battery rather than a failed display.
Size and fitting
The size is engraved on the back. This part is for the 41mm case; the 45mm screen is larger and won't fit. The display is bonded with adhesive and has delicate cables, so open it with gentle heat and a thin blade, disconnect the battery and seal with fresh adhesive once the new screen tests well.
Back from repair, the watch picks up where it left off, from morning runs to overnight sleep data, without the cost of a new Series model.
Specifications
| Compatible devices | Apple Watch Series 8 |
|---|---|
| Case size | 41 mm |
| Part type | OLED display screen assembly |
| Quality | OEM Pull (original, used) |
Questions
What does OEM Pull mean?
It's an Apple display recovered from a donor watch in working order, so it may show light signs of use.
Where do I find the case size?
It's engraved on the back of the watch. This screen is for the 41mm case.
Does it fit the Series 7?
The Series 7 has its own listing. Choose the screen for your watch's series and size.
