Apple Watch Series 10 / 11 (42mm) OLED Display Screen Assembly
$143.66
from $129.29 at 10+
1 / 6
Part

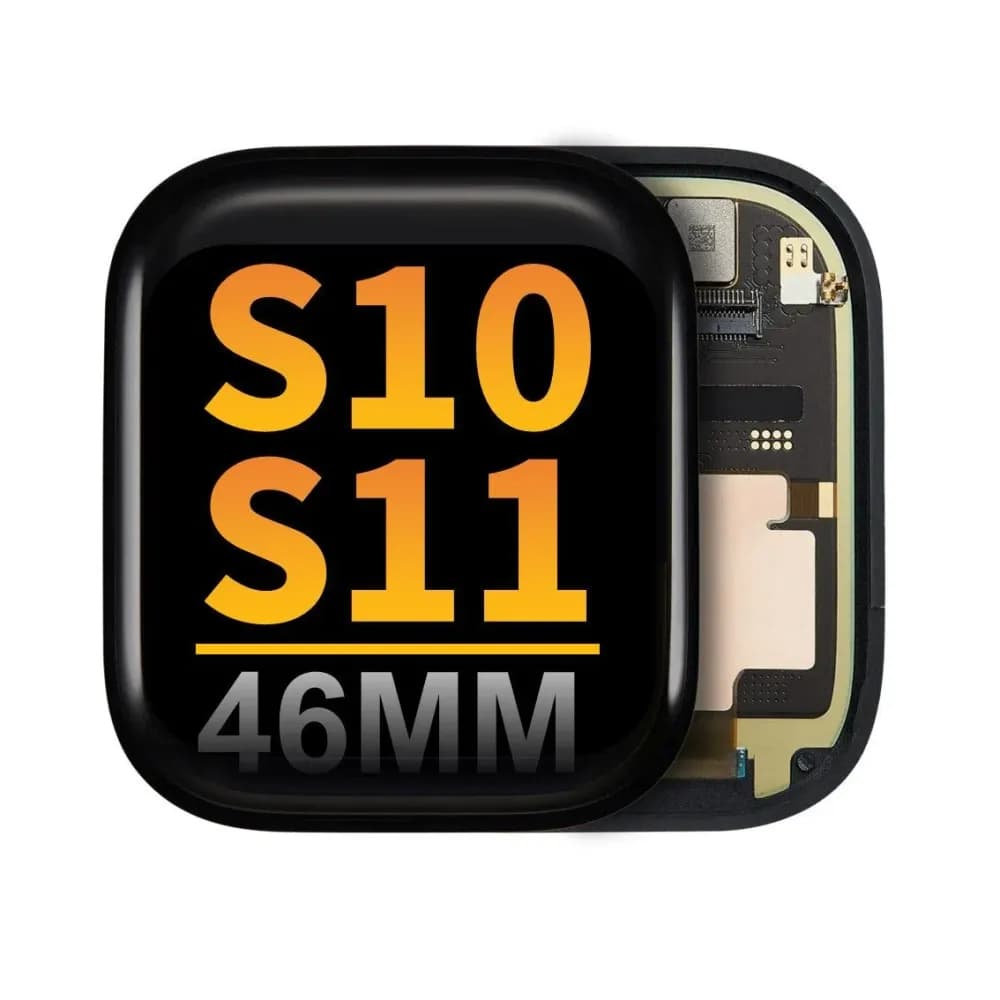

Apple Watch Series 10 / 11 (46mm) OLED Display Screen Assembly
Apple · SKU AW00085 · Fits 2 models
$147.76
per unit| Quantity | Unit price | Saving |
|---|---|---|
| $147.76 | ||
| $140.37 | −5% | |
| $132.98 | −10% |
Selected SKU AW00085
- Ships from Shenzhen, China. Check rates for your country
- No sales tax added at checkout
- 30-day returns on unused parts. Details
- Ask about fit before ordering
Shipping weight 0.05 kg
Compatible with 2 models
Match the model number printed on the device (Settings → About, or on the back) before ordering.
- Apple Watch Series 10A2997, A2998, A2999, A3000, A3001, A3002, A3003, A3206
- Apple Watch Series 11A3331, A3450, A3333, A3451, A3335, A3452, A3337, A3453
Details
On the bench, a 46mm Series 10 or Series 11 usually arrives with the same history: a door frame, a dumbbell or a tiled floor. These are the largest non-Ultra Apple Watch screens and not a cheap part, so the fitting deserves care.
This OLED display screen assembly fits the Series 10 and Series 11 in the 46mm case. It is OEM Pull: Apple's own panel removed from a donor watch.
Confirming a 46mm display fault
Shattered or cracked glass is obvious. The quieter signs are a screen that stays black while the watch pairs and vibrates, touch that ignores one edge, and color patches or lines after a fall. If the watch shows no sign of life at all, rule out the battery and charging before buying a display.
A careful fitting sequence
Warm the edge of the display gently and work a thin blade under the glass.
2. Lift it only as far as the cables allow.
3. Disconnect the battery, then the display.
4. Connect the new screen and test touch, brightness and the always-on mode.
5. Remove every trace of old adhesive and seal with new.
Skip the test step and you risk sealing in a fault. Follow it, and the 46mm watch goes back on the wrist with a clean, bright screen.
Specifications
| Compatible devices | Apple Watch Series 10, Apple Watch Series 11 |
|---|---|
| Case size | 46 mm |
| Part type | OLED display screen assembly |
| Quality | OEM Pull (original, used) |
Questions
What does OEM Pull mean?
It's an original Apple display taken from another watch in working order. It may show light signs of previous use.
How do I check my case size?
The case size is engraved on the back of the watch. This screen is for the 46mm case only.
Does it fit the 42mm model?
No. The 42mm model uses a smaller screen with its own listing.
