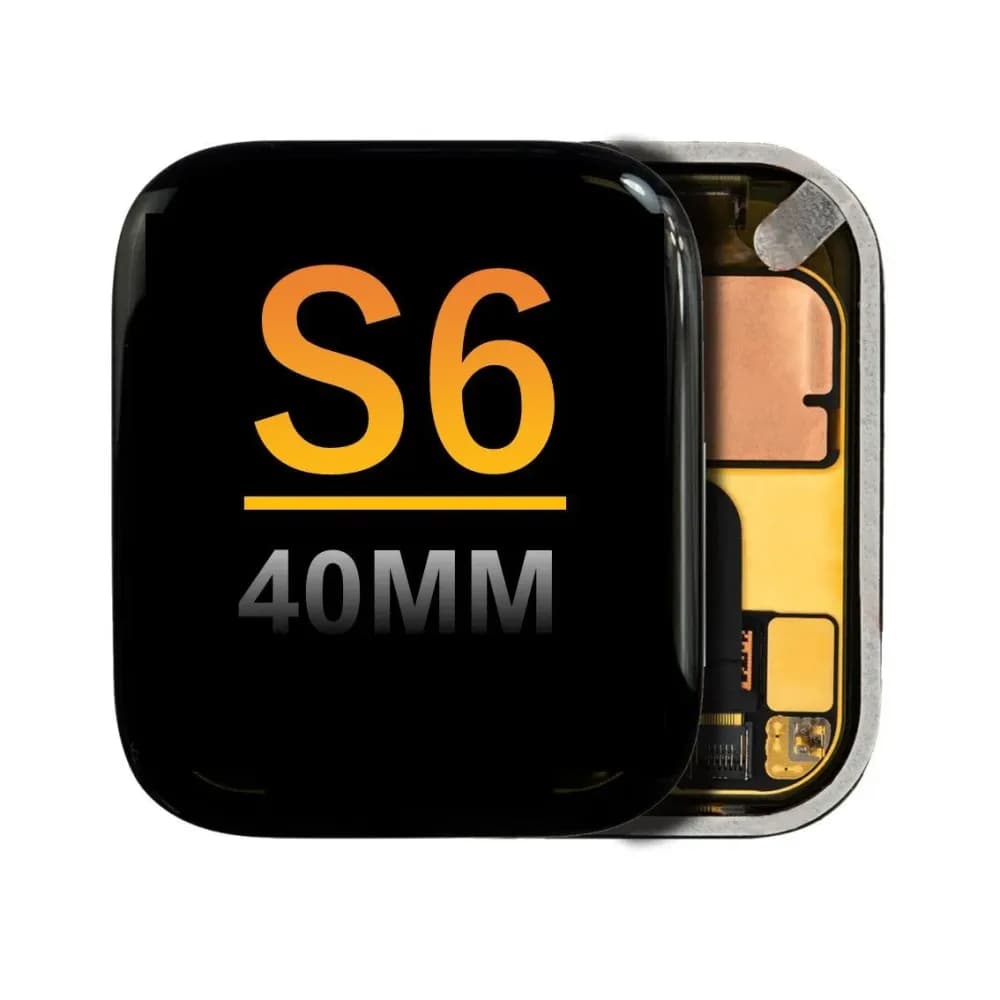

Apple Watch Series 6 (40mm) OLED Display Screen Assembly

1 / 2

Part

Apple Watch Series 6 (40mm) OLED Display Screen Assembly

Apple · SKU AW00013 · Fits 1 model

$55.44

per unit
Option
Volume pricing
QuantityUnit priceSaving
$55.44
$52.67−5%
$49.90−10%

Selected SKU AW00013

Shipping weight 0.05 kg

Compatible with 1 model

Match the model number printed on the device (Settings → About, or on the back) before ordering.

Details

Plenty of 40mm Series 6 watches have changed hands by now. A parent upgrades, and the old watch goes to a teenager who wears it through basketball practice, bike rides and school. Sooner or later the screen meets a hard edge and a crack spreads across the face.

This OLED display screen assembly fits the 40mm Series 6, in OEM Pull or OEM Refurb quality, both using Apple panels.

What a broken 40mm Series 6 screen looks like

  • A crack from a knock, often starting at one corner.

  • A black display while the watch still vibrates for messages.

  • Touch that doesn't respond, or flicker and lines after a fall.

  • A screen raised from the case, which points to a swollen battery.

Worth knowing about the Series 6

The Series 6 added the blood oxygen sensor and a brighter always-on display. Unlike the Series 4 and 5, it has no Force Touch layer under the screen, so there's no pressure gasket to replace, just the display adhesive.

Check the 40mm size on the back. The screen is adhesive-bonded and connected by fine cables, so it's best opened with gentle heat and a thin blade by someone with watch repair experience. Disconnect the battery first and use fresh adhesive when closing.

Repaired once, a hand-me-down Series 6 can keep up with a busy teenager for a few more years.

Specifications

Compatible devicesApple Watch Series 6
Case size40 mm
Part typeOLED display screen assembly
QualityOriginal (OEM Pull or OEM Refurb)
Quality optionsOEM Pull (original, used), OEM Refurb (original, refurbished)

Questions

What's the difference between OEM Pull and OEM Refurb?

OEM Pull is an Apple display recovered from a donor watch. OEM Refurb is an Apple panel refurbished with new front glass. Both are original Apple panels.

Where do I find the case size?

It's engraved on the back of the watch. This screen is for the 40mm case.

Does it fit the SE 2?

No. It's listed for the Series 6 40mm only.
