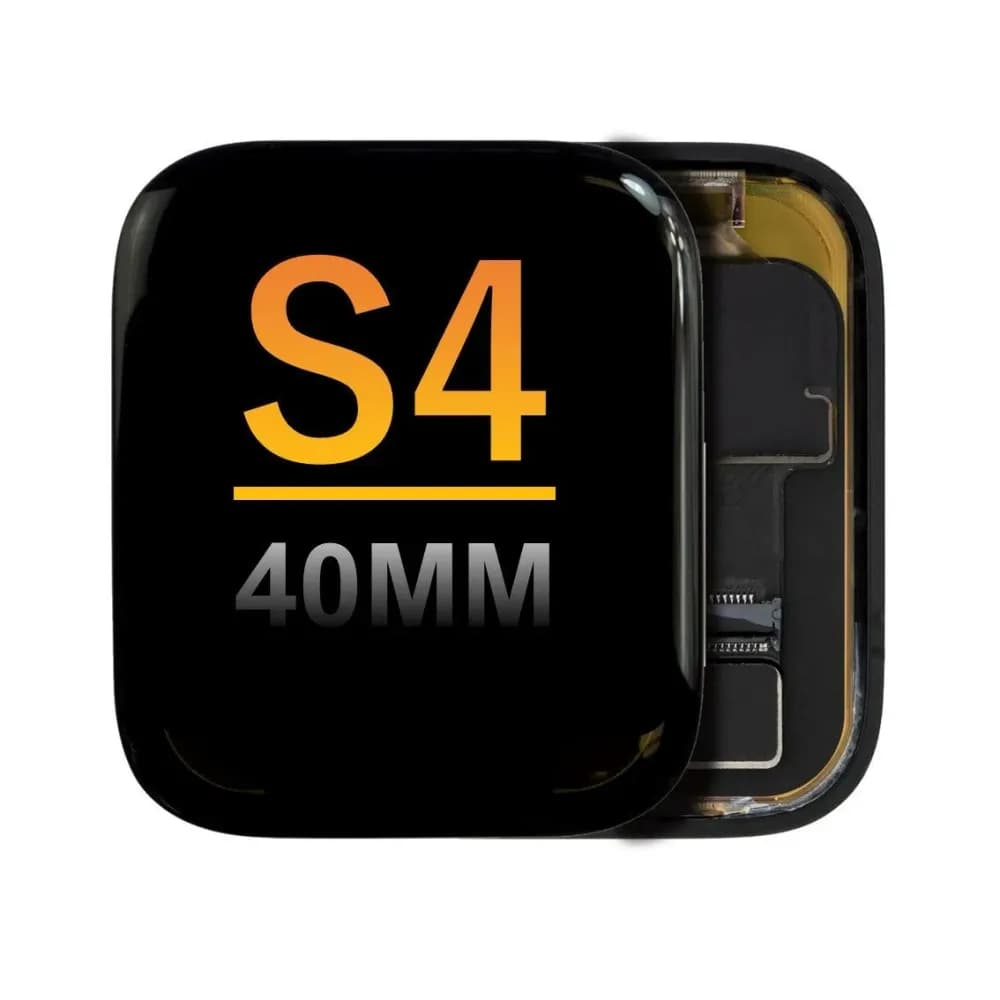

Apple Watch Series 4 (40mm) OLED Display Screen Assembly

Name: Apple Watch Series 4 (40mm) OLED Display Screen Assembly
Brand: Apple
SKU: AW00009
Price: 38.38 USD

Apple · SKU AW00009 · Fits 1 model

$38.38

per unit

Option

Original Pull$38.38Original Refurbished$38.38

Volume pricing
Quantity	Unit price	Saving
	$38.38
	$36.46	−5%
	$34.54	−10%

Selected SKU AW00009

Ships from Shenzhen, China. Check rates for your country
No sales tax added at checkout
30-day returns on unused parts. Details
Ask about fit before ordering

Shipping weight 0.05 kg

Compatible with 1 model

Match the model number printed on the device (Settings → About, or on the back) before ordering.

Apple Watch Series 4A1977, A1978, A1975, A2007, A1976, A2008

Details

The Series 4 was the first major redesign of the Apple Watch: new 40mm and 44mm cases, a larger display with rounded corners, fall detection and the ECG app. The screen reaches much closer to the edge than on earlier models, which looks great and leaves the glass more exposed to knocks.

This OLED display screen assembly fits the 40mm Series 4, in OEM Pull or OEM Refurb quality, both based on Apple panels.

Typical 40mm Series 4 screen failures

Cracked glass is the main one, usually from a door frame or the edge of a desk. Others are a display that stays dark while the watch still vibrates, touch that responds only in parts of the screen, and a panel lifted by a swollen battery.

Plan for the gasket

The Series 4 still has Force Touch hardware, so a thin pressure-sensing gasket sits under the display. It nearly always tears when the old screen comes off. Have a replacement gasket and fresh adhesive on hand before you start, and work patiently around the short cables with gentle heat and a thin blade.

Pull or refurb?

OEM Pull is a used Apple display from a donor watch; OEM Refurb puts new glass on an Apple panel. Both fit the same way.

With a new screen and gasket, a 40mm Series 4 is good for several more years of daily wear.

Specifications

Compatible devices	Apple Watch Series 4
Case size	40 mm
Part type	OLED display screen assembly
Quality	Original (OEM Pull or OEM Refurb)
Quality options	OEM Pull (original, used), OEM Refurb (original, refurbished)

Questions

What's the difference between OEM Pull and OEM Refurb?

OEM Pull is an Apple display recovered from a donor watch. OEM Refurb is an Apple panel refurbished with new front glass. Both are original Apple panels.

Where do I find the case size?

It's engraved on the back of the watch. This screen is for the 40mm case.

Does it fit the Series 5 or SE?

No. It's listed for the Series 4 40mm only.
