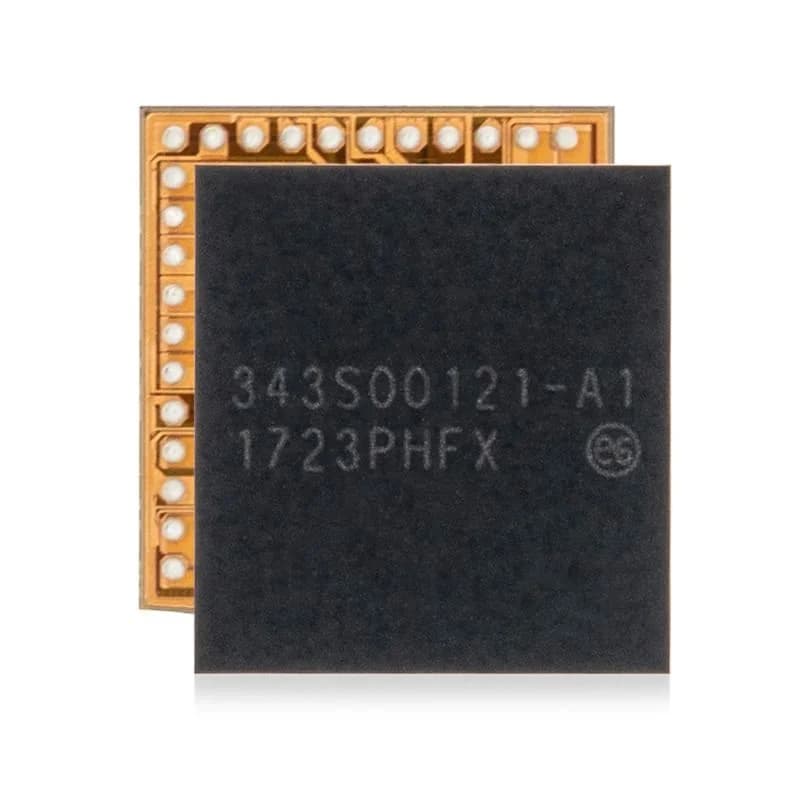

343S00121 Charging IC for iPad Pro 10.5 (2017)

$12.38

per unit

Volume pricing
Quantity	Unit price	Saving
	$12.38
	$11.76	−5%
	$11.14	−10%

Ships from Shenzhen, China. Check rates for your country
No sales tax added at checkout
Shipping & returns
Ask about fit before ordering

Shipping weight 0.01 kg

Compatible with 1 model

Match the model number printed on the device (Settings → About, or on the back) before ordering.

iPad Pro 10.5-inchA1701, A1709, A1852

Details

Picture an iPad Pro 10.5 that sat in a drawer for a year and now won't take a charge. After the battery has had its chance, the charging IC is worth checking. The 343S00121 is listed as the charging IC for the A1701 and A1709.

The listing doesn't give a pin count or board position. The iPad Pro 10.5 also has a separate USB charging IC, the 343S00105, so make sure you're replacing the right one.

Symptoms

Not charging with a good charger.
Unstable charging.
A charging icon that shows without charging.
Slow charging.

Working on it

Charge the iPad for an hour with a known-good adapter before judging the board. If it still won't charge, open the screen carefully and disconnect the battery.

Use board view to find the right chip, preheat, then lift and replace it on fresh flux. Test charging before closing up and let it run for a while to see the percentage climb steadily. If it still refuses, measure the input to the USB charging IC as well, since either chip can stop the iPad charging. Fit fresh adhesive when you refit the screen.
