Programmed USB-C Controller IC for iPhone 16, 16 Plus, 16 Pro, Pro Max

$8.22

per unit

Volume pricing
Quantity	Unit price	Saving
	$8.22
	$7.81	−5%
	$7.40	−10%

Ships from Shenzhen, China. Check rates for your country
No sales tax added at checkout
30-day returns on unused parts. Details
Ask about fit before ordering

Shipping weight 0.2 kg

Compatible with 4 models

Match the model number printed on the device (Settings → About, or on the back) before ordering.

iPhone 16A3081, A3286, A3288, A3287
iPhone 16 PlusA3082, A3289, A3291, A3290
iPhone 16 ProA3083, A3292, A3294, A3293
iPhone 16 Pro MaxA3084, A3295, A3297, A3296

Details

Pairing between a USB controller and its EEPROM has made cable charging repairs on recent iPhones slower than they used to be. This 121-pin controller for the iPhone 16, 16 Plus, 16 Pro and 16 Pro Max is sold pre-programmed, which according to the listing removes the need for an EEPROM swap.

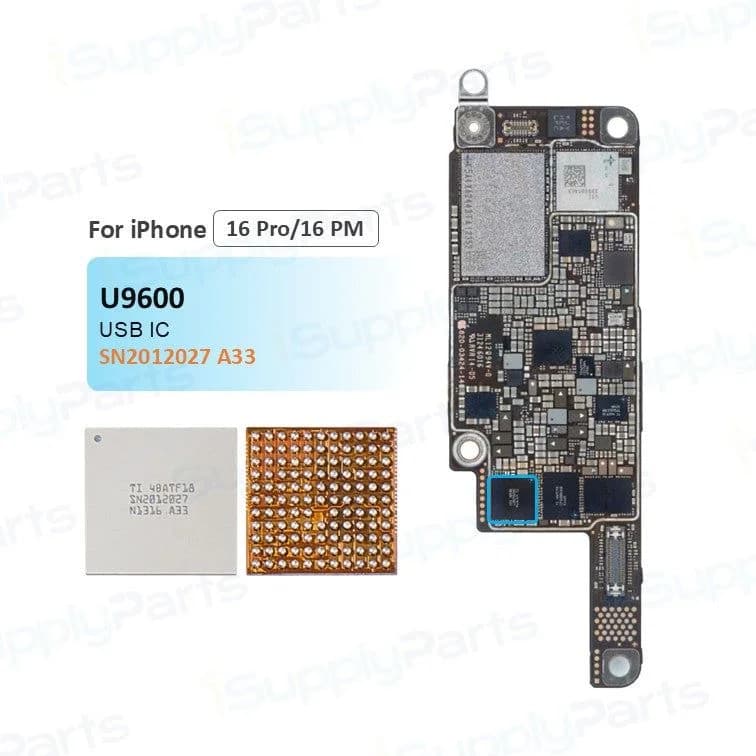

The listing gives a board position for each model, but we couldn't confirm it for the iPhone 16 from repair references, so check your board view. It also says compatible with the iPhone 15 series at the top of the list, which conflicts with the title; a separate listing covers the iPhone 15.

When to use it

No charging by cable.
No connection to a computer.
Cable charging fails while wireless works.
Fault after a damaged cable or liquid.

Repair steps

Clean the port, try a known-good cable and test wireless charging to narrow down the fault. Separate the stacked board, preheat and lift the original controller.

Fit the replacement on fresh flux, rejoin the board and test charging and a computer connection. Check touch and Face ID as well before closing up, since board separation can disturb other connections.

Specifications

Condition	New
Part type	USB-C controller IC (pre-programmed, per listing)
Pin count	121
Compatible devices	iPhone 16, iPhone 16 Plus, iPhone 16 Pro, iPhone 16 Pro Max
