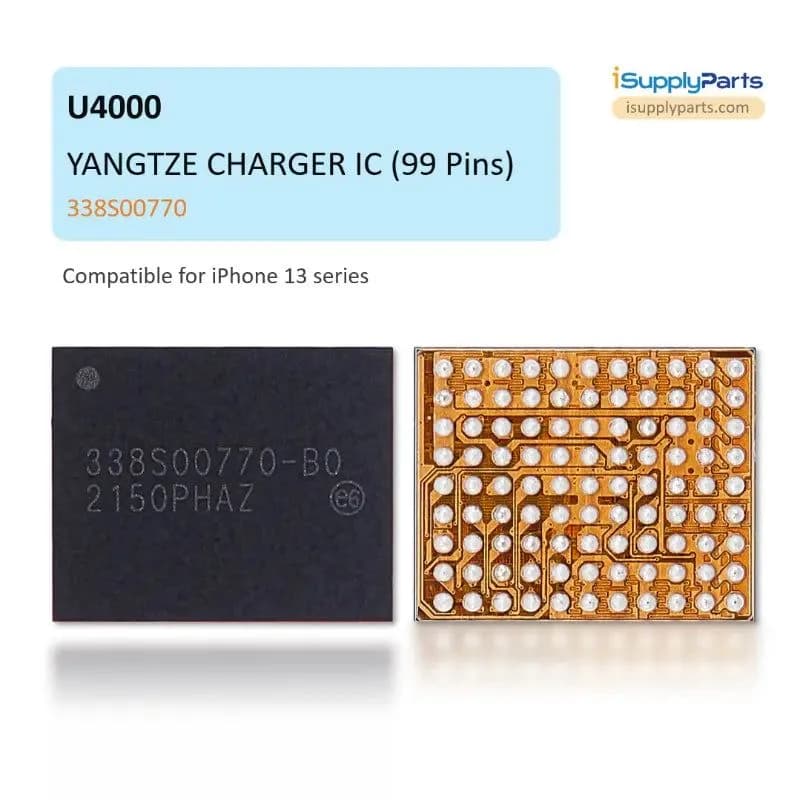

338S00770 Charging IC for iPhone 13 Series, 99 Pin

$5.52

per unit

Volume pricing
Quantity	Unit price	Saving
	$5.52
	$5.24	−5%
	$4.97	−10%

Ships from Shenzhen, China. Check rates for your country
No sales tax added at checkout
Shipping & returns
Ask about fit before ordering

Shipping weight 0.01 kg

Compatible with 4 models

Match the model number printed on the device (Settings → About, or on the back) before ordering.

iPhone 13 miniA2481, A2626, A2629, A2630, A2628
iPhone 13A2482, A2631, A2634, A2635, A2633
iPhone 13 ProA2483, A2636, A2639, A2640, A2638
iPhone 13 Pro MaxA2484, A2641, A2644, A2645, A2643

Details

When an iPhone 13 receives 5 V from the charger but the battery percentage stays put, the charging IC is the next stage to test. The 338S00770 is the 99-pin charging IC listed for the 13 mini, 13, 13 Pro and 13 Pro Max.

The listing describes it as OEM New Grade. It gives a board position, but we couldn't confirm it from repair references, so check your board view.

Charging faults

5 V present but no battery charge.
Charging that stops at a low percentage.
A short on the charger output.
Fault after a faulty adapter.

Separating it from the USB controller

The USB controller validates the cable before the charging IC converts 5 V for the battery. If wireless charging works and cable charging doesn't, look at the controller first. If neither charges, the charging IC moves up the list. Test with a known-good battery before going to the board.

Split the board carefully, preheat and lift the chip. Reball or fit the new one on fresh flux, then test cable and wireless charging.

Specifications

Quality	Original (per listing: OEM New Grade)
Part number	338S00770
Part type	Charging IC
Pin count	99
Compatible devices	iPhone 13 mini, iPhone 13, iPhone 13 Pro, iPhone 13 Pro Max
