SUNSHINE S-918L Pro 360° Rotary Screen Separator, 8.5-inch, Vacuum + Heating

1 / 5

Tool

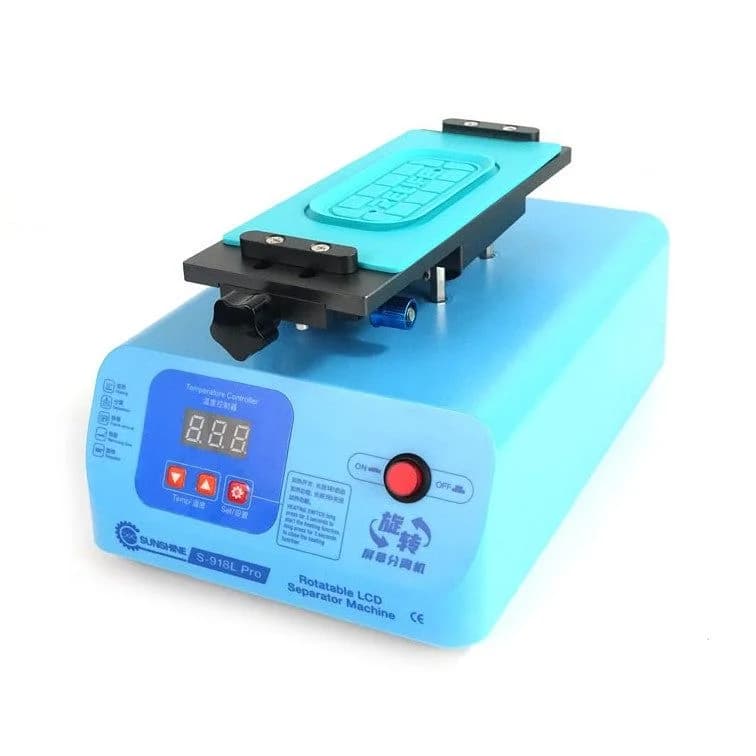

SUNSHINE S-918L Pro 360° Rotary Screen Separator

SUNSHINE · SKU SS10303-1

$54.73

per unit
Option
Volume pricing
QuantityUnit priceSaving
$54.73
$51.99−5%
$49.26−10%

Selected SKU SS10303-1

Shipping weight 2.3 kg

Details

Cutting around a screen usually means unclamping, turning and reclamping at every corner, and each time the glue starts to set again. The SUNSHINE S-918L Pro solves that with a heated vacuum platform that rotates a full 360 degrees.

A built-in pump holds the screen by vacuum at one press, and the PTC heater is adjustable from 50 to 130°C on an aluminum plate with an insulating silicone pad. The working area is 8.5 inches (195 x 80 mm), for screens up to 8 inches. It's rated 400 W, weighs about 1.6 kg and measures 175 x 275 x 136.5 mm.

When to reach for it

  • Cracked glass on a working OLED that must come off in one piece.

  • A curved screen that keeps slipping during the cut.

  • Adhesive that sets again while you reposition the phone.

  • A small tablet screen up to 8 inches.

Tips

Let the plate reach temperature before mounting the screen. Check the vacuum holds, then rotate as you cut so the wire always works toward you.

Choose EU or AU 220 V, or US 110 V, to match your mains.

Specifications

BrandSUNSHINE
ModelS-918L Pro
ConditionNew
Product typeRotary heated vacuum screen separator
Temperature range50-130 °C
Working size195 x 80 mm
Supported screensUp to 8 in
Rotation360°
Power400 W
Rated current6 A
Plug/voltage optionsEU 220 V, AU 220 V, US 110 V
Product size175 x 275 x 136.5 mm
Net weightApprox. 1.6 kg

Questions

What temperature range does it have?

50 to 130°C.

Does it rotate?

Yes, 360 degrees.

How large a screen fits?

Up to 8 inches.
