REFOX RM22 Mini UV Curing Box for Waterproof Glue and OCA Glue Curing

1 / 7

Tool

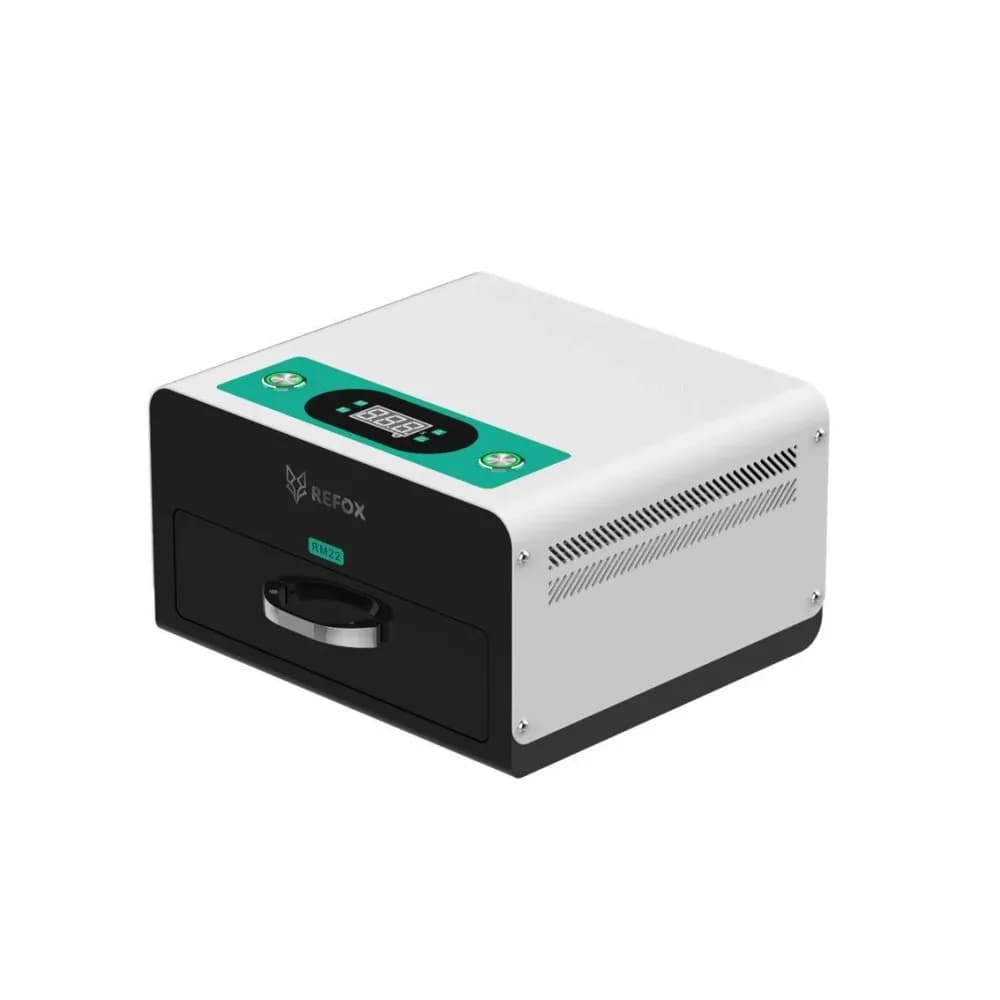

REFOX RM22 Mini UV Curing Box

REFOX · SKU RX20057-1

$124.82

per unit
Option
Volume pricing
QuantityUnit priceSaving
$124.82
$118.58−5%
$112.34−10%

Selected SKU RX20057-1

Shipping weight 7 kg

Details

A handheld UV lamp leaves soft spots where the light didn't reach. The REFOX RM22 Mini is a compact enclosed UV box for curing waterproof glue and OCA evenly on one bench.

It measures 25.3 x 25.3 x 14.7 cm and weighs 6 kg, with one-button operation and an enclosed chamber that keeps UV inside. It comes with a silicone pad and power cord, in EU or UK 220 V or US 110 V versions.

When the RM22 helps

  • A water-damaged phone being resealed with waterproof glue.

  • Loose back glass that won't stay seated until the glue sets.

  • OCA that stays soft at the edges, leaving faint spots under new glass.

  • A cracked frame bond that failed and has been reglued.

Tips

Place the part flat on the silicone pad, close the lid and follow the glue maker's curing time. Check one part before doing a batch.

The RM22 suits a single technician; for many parts at once, the RM26 is the larger REFOX box. The listing doesn't state UV wavelength, so confirm it matches your glue.

Specifications

BrandREFOX
ModelRM22 Mini
ConditionNew
Product typeUV curing box
Product size25.3 x 25.3 x 14.7 cm
Package size28 x 28 x 16 cm
Net weight6 kg
Plug/voltage optionsEU 220 V, UK 220 V, US 110 V
ContentsCuring box, silicone pad, power cord

Questions

How big is it?

25.3 x 25.3 x 14.7 cm, 6 kg.

Which plugs are available?

EU, UK or US.

What wavelength does it use?

The listing doesn't say.
