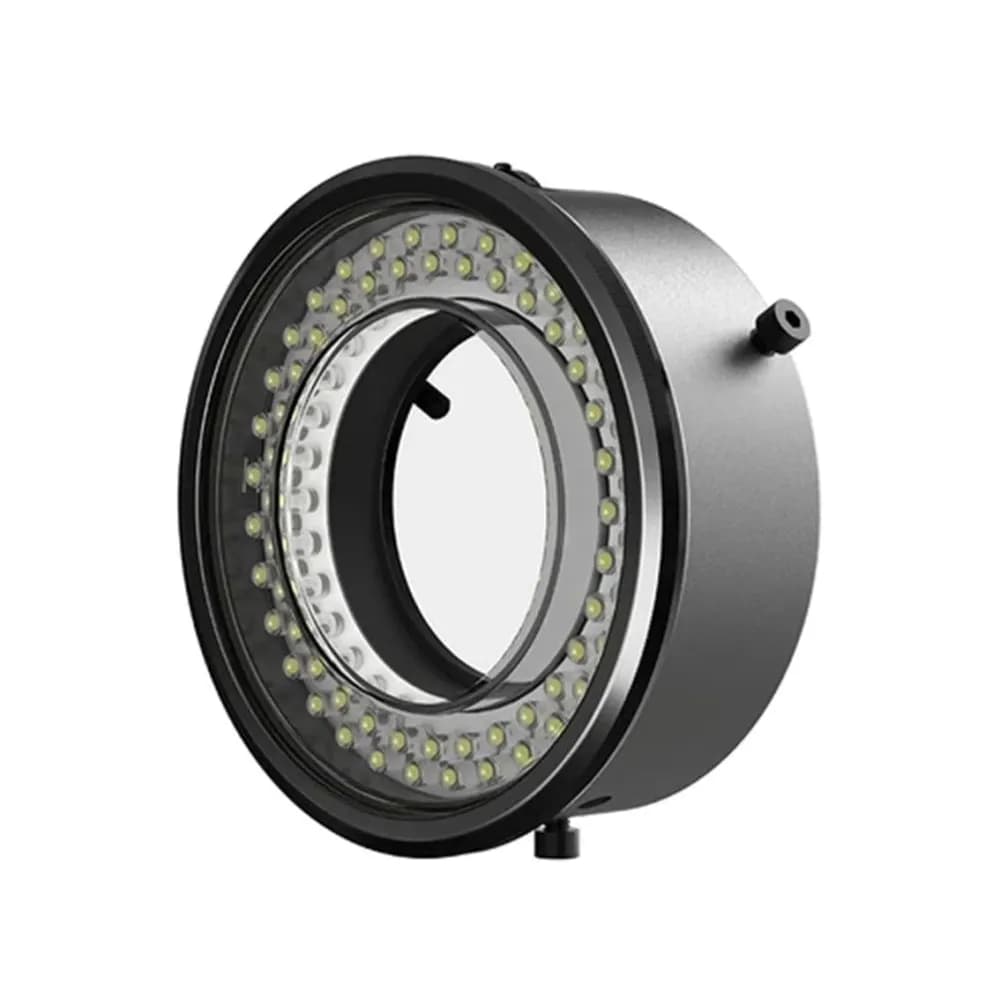

LUOWEI LS02 Microscope Ring Lamp

If you work at high zoom, less light reaches your eyes and the view gets dim. The LUOWEI LS02 is a high-intensity LED ring lamp for that situation.

The listing describes the LS02 as brighter and more uniform than standard ring lamps, with adjustable brightness, low heat and easy installation on most microscope models. The packaging measures 7 × 7 × 3 cm and weighs 180 g, heavier than the LS01.

When the LS02 helps

• Dim views at high zoom during IC reballing.

• Hairline cracks in joints that need strong light.

• Damaged traces before jumper wire work.

• Shadows around tall parts hiding faults.

Getting the light right

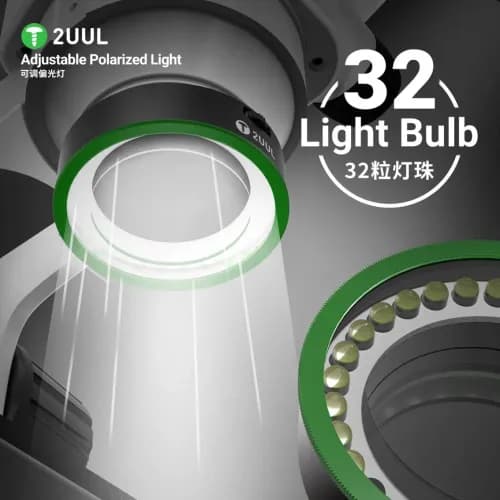

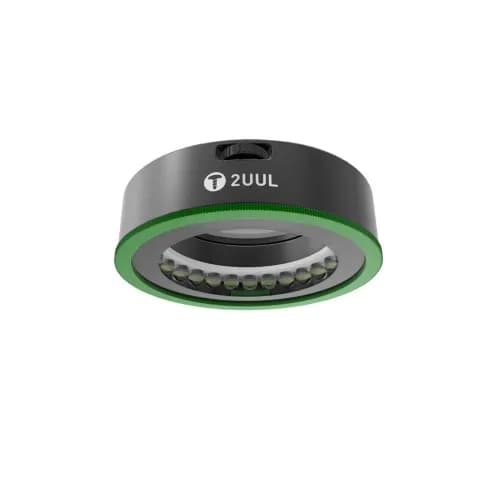

More brightness isn't always better. Start at medium and raise it only when you zoom in. If shiny shields reflect glare, angle the board slightly or consider a polarized lamp such as the 2UUL MS97.

The listing doesn't give the inner diameter, LED count or power source, so measure your objective first. Mount the ring level and keep it clear of flux smoke, since residue on the lens of each LED cuts output over time. A slightly lower brightness often shows solder texture better than full power.
