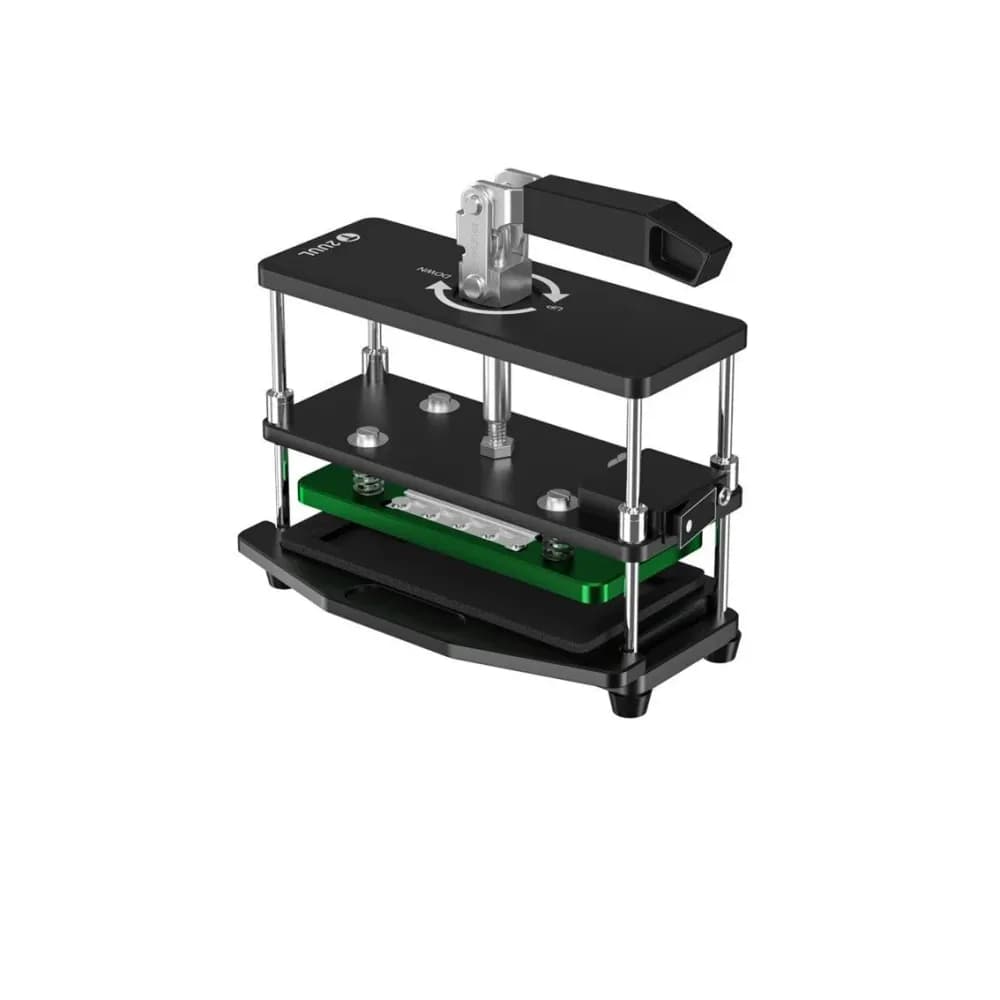

2UUL DA05 Heating and Pressurizing Station

Bonding a new screen or back cover needs warm adhesive and even pressure at the same time. The 2UUL DA05 station does both: constant-temperature heating and an adjustable four-axis press on one aluminum frame.

The press plate rotates 360 degrees, has a cutout to avoid uneven pressure around the camera, and suits flat and curved screens. The station measures 210 x 78 x 205 mm and weighs about 2.48 kg, with 100 V input and 24 V output listed.

Jobs it's built for

• A new screen that lifts at the edges after fitting.

• Back glass that won't seal down.

• A frame bond that is loose after a drop.

• Water resistance lost after the seal was torn.

Step by step

Clean the bonding surfaces, warm the adhesive with the heater, then position the phone and set the press height. Apply pressure until the adhesive bonds and check alignment before reassembly.

Keep the plates clean and avoid excess pressure on curved screens. The listing doesn't give the heating temperature, and lists 100 V input only, so confirm it suits your mains supply before ordering.
