SUNSHINE P-30A Short-Killer

A shorted capacitor on a phone board looks exactly like the hundreds of good ones around it. A short killer pushes controlled power into the shorted line so the faulty part warms up, and the heat gives it away.

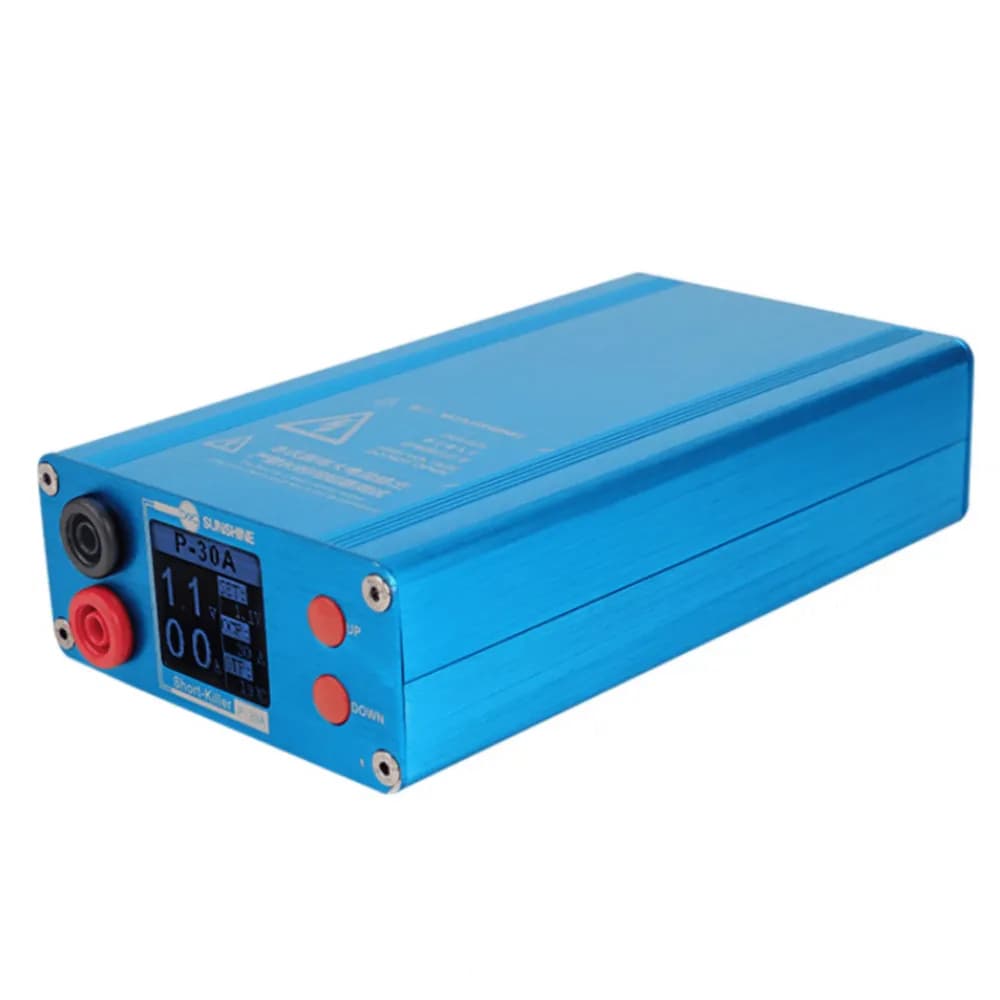

The P-30A is a short-circuit troubleshooting tool from SUNSHINE. It supplies controlled DC power to a faulty circuit and lets you watch current consumption and look for localized heating. The listing names phones, tablets and other PCBs.

When the P-30A is the tool

• A power rail shorted to ground.

• A shorted capacitor after liquid damage.

• A failed IC dragging a line down.

• No-power or boot failures traced to a short.

Using it safely

Confirm the rail's normal voltage first and start with a low output, increasing carefully only if the part doesn't show itself. Too much voltage can damage healthy ICs on the same line.

Use a thermal camera, freeze spray or a thin layer of rosin or alcohol to find the hot spot. Once found, disconnect power before removing the part, then measure the line again to confirm the short has gone. The listing notes that functions vary by P-30A version, and short hunting is best left to technicians who know the board's power circuits.
