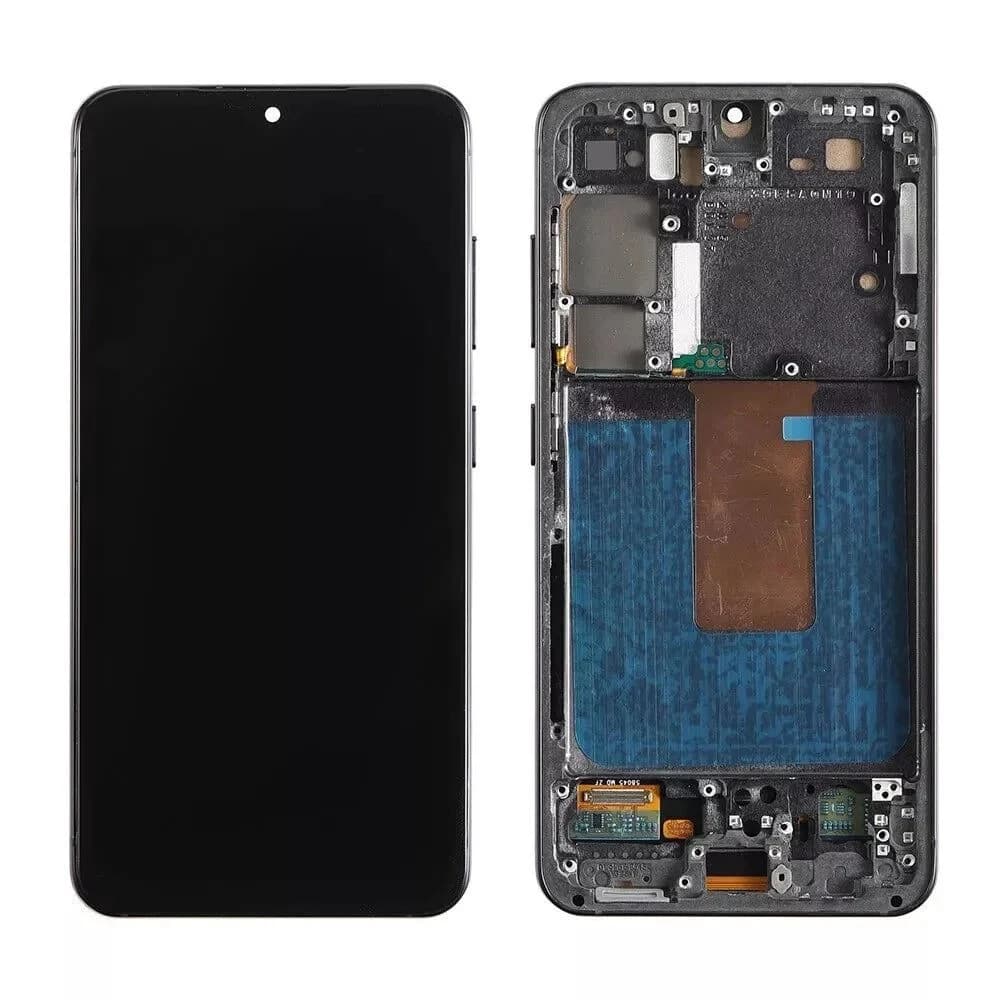

Samsung Galaxy S23 OLED Screen with Frame, 120Hz

$97.01

per unit

Volume pricing
Quantity	Unit price	Saving
	$97.01
	$92.16	−5%
	$87.31	−10%

Selected SKU SM80014

Ships from Shenzhen, China. Check rates for your country
No sales tax added at checkout
30-day returns on unused parts. Details
Ask about fit before ordering

Shipping weight 0.1 kg

Compatible with 1 model

Match the model number printed on the device (Settings → About, or on the back) before ordering.

Galaxy S23

Details

The Galaxy S23 is Samsung's compact 2023 flagship, with a 120Hz OLED screen. When the screen breaks, this aftermarket OLED with frame offers a less expensive repair than a Samsung part.

The listing describes it as a new aftermarket OLED screen assembly with frame for the S23, with 120Hz support and built-in touch. Frame colours are Graphite, Green, Cream, Phantom Black, Lavender and Lime.

When to use it

A cracked or broken screen.
A display that's black or malfunctioning.
Touch that has failed.
Lines or dead pixels.

Installation

Move the battery, boards, cameras and speaker into the new frame. The battery is glued, so be patient and don't bend it. The S23 has a small frame with tight cable routing, so photograph each connector before you lift it, then compare your work against the photos when you reassemble. Fit fresh adhesive around the back glass so it sits flush and keeps dust out.

Pick the frame colour that matches the back. After fitting, test touch, the fingerprint reader, the front camera, the earpiece and the 120Hz setting. Explain to the owner that water resistance may be lower than before.

Specifications

Condition	New
Quality	Aftermarket OLED (per listing)
Part type	OLED screen assembly with frame
Refresh rate	120 Hz (per listing)
Compatible devices	Samsung Galaxy S23
Frame colour options	Graphite, Green, Cream, Phantom Black, Lavender, Lime
