Samsung Galaxy S22 Ultra OLED Screen with Frame and Tool Kit

Name: Samsung Galaxy S22 Ultra OLED Screen with Frame and Tool Kit
Brand: Samsung
SKU: SM01017
Price: 72.45 USD

Samsung · SKU SM01017 · Fits 1 model

$72.45

per unit

Volume pricing
Quantity	Unit price	Saving
	$72.45
	$68.83	−5%
	$65.21	−10%

Selected SKU SM01017

Ships from Shenzhen, China. Check rates for your country
No sales tax added at checkout
30-day returns on unused parts. Details
Ask about fit before ordering

Shipping weight 0.18 kg

Compatible with 1 model

Match the model number printed on the device (Settings → About, or on the back) before ordering.

Galaxy S22

Details

The Galaxy S22 Ultra brought the Note line's built-in S Pen into the Galaxy S series, with a slot in the frame for the pen. That's one reason the frame matters on this repair: the screen comes pre-installed in a new frame, and frames for different regions differ slightly, so the version has to match your phone.

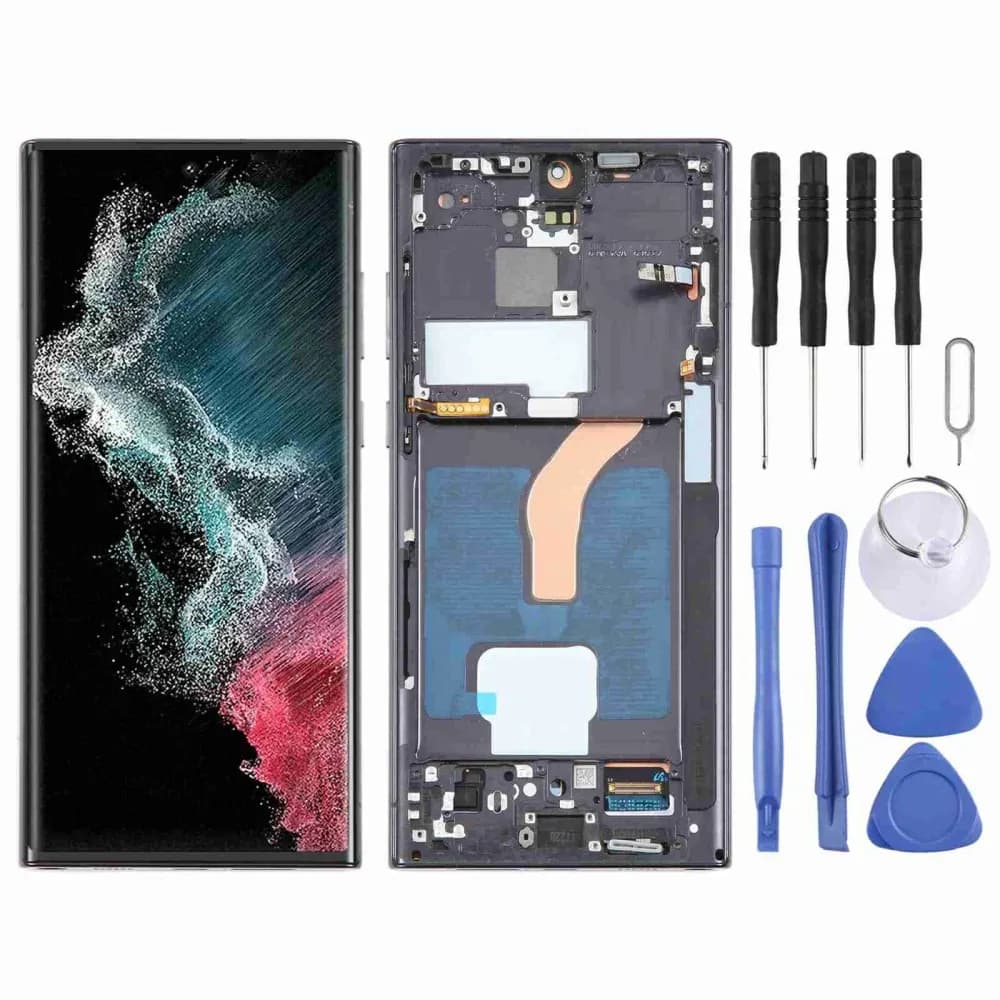

This aftermarket OLED screen and digitizer assembly comes in a new frame with a repair tool kit. Options are frame color (eight colors), frame version (US or EU) and panel size (6.78 or 6.67 inches). It doesn't fit the S22 or S22+.

When the S22 Ultra screen assembly is needed

It replaces a cracked or shattered screen, a display with lines or black areas, a screen that stays dark while the phone runs, and touch that is unresponsive or erratic, all in one part, without separating the old screen from its frame.

Choose the US or EU frame to match your model number shown under Settings > About phone. The 6.78-inch panel is closer to the original 6.8-inch visible area; the 6.67-inch option is smaller and costs less. Test the screen before transferring parts, and after the repair re-register fingerprints.

With the right version, the S22 Ultra gets a fresh screen and frame in one repair.

Specifications

Part type	OLED screen and digitizer assembly with frame
Compatible device	Samsung Galaxy S22 Ultra
Model numbers	SM-S908B, SM-S908B/DS, SM-S908U, SM-S908U1, SM-S908W, SM-S908N, SM-S9080, SM-S908E, SM-S908E/DS
Panel technology	OLED
Display size options	6.78 / 6.67 in
Original S22 Ultra display (reference)	6.8 in Dynamic AMOLED 2X, 3088 x 1440, 120 Hz
Quality	Aftermarket
In-display fingerprint	Supported (supplier specification)
Frame colors	Phantom Black, White, Sky Blue, Burgundy, Graphite, Green, Red, Bora Purple
Frame versions	US, EU
Package contents	1 x screen assembly with frame, 1 x repair tool kit
Gross weight	0.188 kg
Box size	18 x 12 x 4 cm

Questions

Which phones does this screen fit?

Only the Galaxy S22 Ultra (SM-S908 models listed in the specs). It doesn't fit the S22 (SM-S901) or S22+ (SM-S906).

What is the difference between the 6.78-inch and 6.67-inch options?

It's the active size of the replacement panel. The 6.78-inch option is closer to the original 6.8-inch visible area; the 6.67-inch option is slightly smaller and costs less.

Should I choose the US or EU frame version?

Choose the version that matches your phone. If you're unsure, send us your model number from Settings > About phone before ordering.

Does the in-display fingerprint sensor work with this screen?

The supplier states that the in-display fingerprint sensor is supported. After the repair, delete the old fingerprints and register them again.

Should I test the screen before installing it?

Yes. Connect it to the phone and check display, touch and fingerprint before removing protective film or gluing anything. Don't bend the display flex more than 90 degrees, as a sharp bend can leave the screen black.
