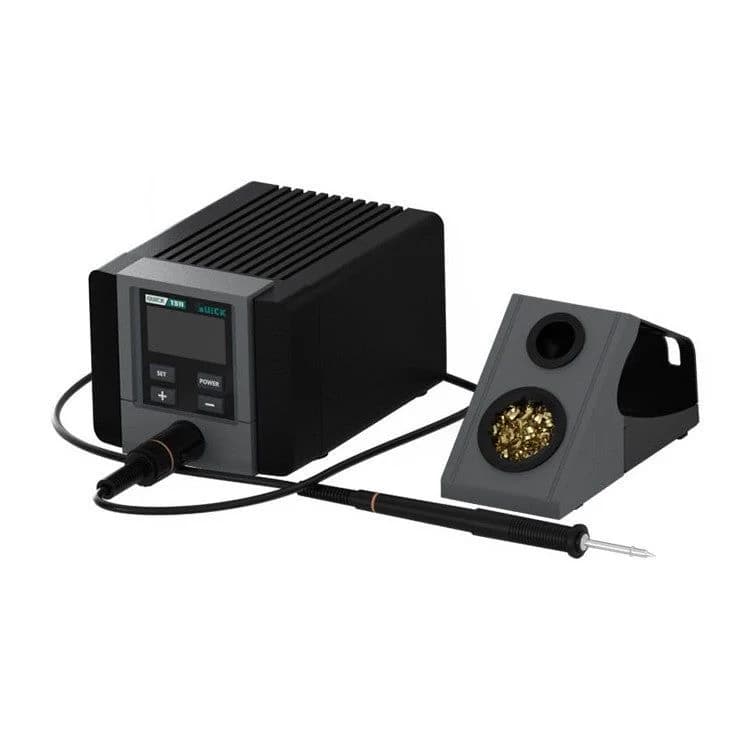

QUICK TS1100 Intelligent Lead-Free Soldering Station

A trainee bumps the temperature up to 450°C to speed things up, and the next tech lifts a pad. The QUICK TS1100 has a password lock on its parameters, so settings stay where the shop sets them.

It's a 90 W lead-free station with a 100 to 450°C range, ±2°C stability and an LCD. It uses a TSS30A handle, TSS10A metal heating core and 960 series tips. Tip-to-ground resistance is under 2 Ω and potential under 2 mV, and the station monitors grounding in real time. It also has a temperature alarm, Celsius/Fahrenheit switching, sleep mode and touch buttons.

When it pays off

• Lifted pads from settings changed by others.

• Static damage to CPU, NAND or baseband chips.

• Faint lead-free joints from slow recovery.

• Tips worn by long idle time.

Setup

Set your working temperature for the shop's usual solder, then lock it so only a supervisor can change it. Check the ground connection before work starts; the station's monitoring will flag a poor earth. Let the sleep mode cool the tip between jobs.

Plugs are EU, AU or US. Pick the one that matches your mains, and stock spare 960 series tips in the shapes your bench uses most.
