T12 Joystick Removal Tip for PS5, PS4, Xbox & Switch Pro Controllers

Joystick drift is one of the most common game controller faults. Replacing the stick means desoldering a module with a row of through-hole pins and lugs. Doing it pin by pin with a normal tip is slow, and the pads can lift. A wide tip heats all the joints at once, so the module comes off cleanly.

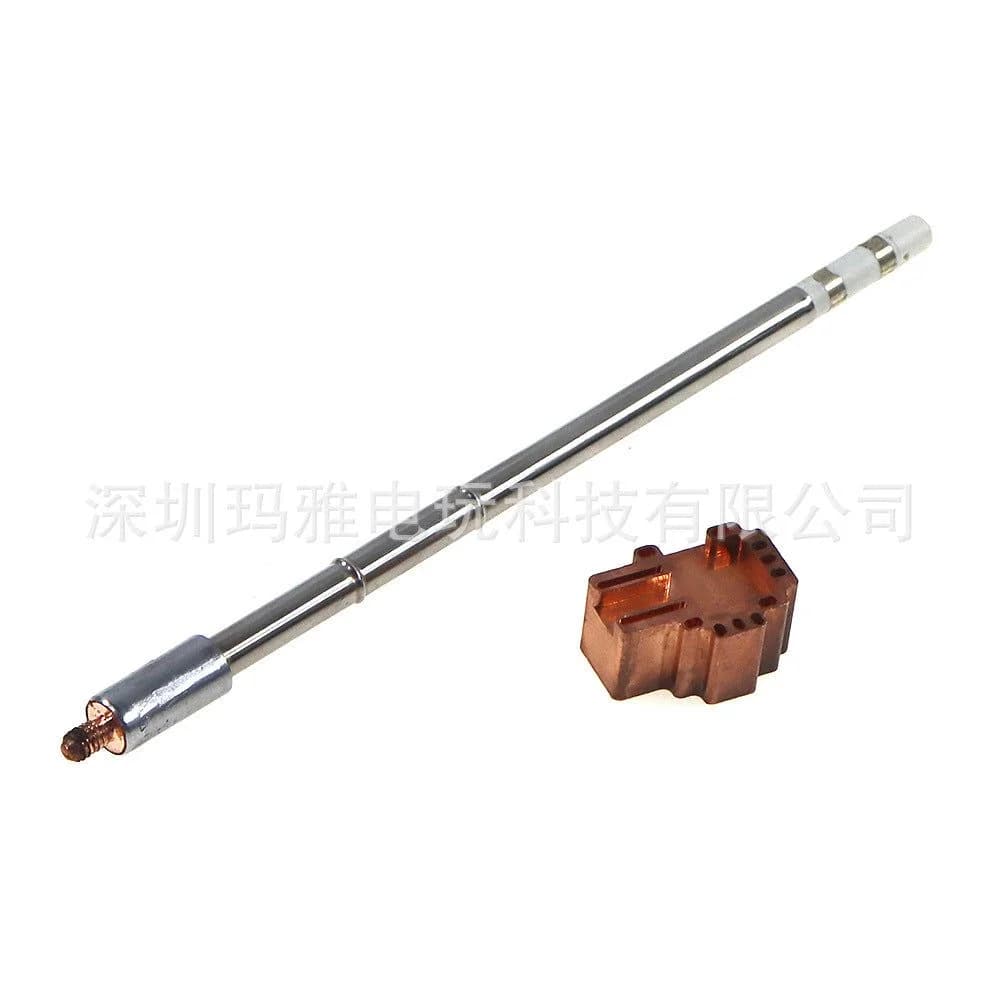

This T12-style tip has its heating element built in. According to the listing, it's for PS5, PS4, Xbox and Switch Pro controllers. It comes in 13mm and 16mm versions and needs a T12 station rated at 60W or more. The listing recommends a working temperature of 350–390℃.

When it's useful

• Replacing a drifting or broken joystick module.

• Removing a stick damaged in a drop.

• Clearing pads lifted by old desoldering.

• Running a high volume of controller repairs.

Care

The heating core wears out with use. The listing advises switching the station off when you're not working to make it last longer. Add fresh solder and flux before heating so the heat transfers evenly to every joint.

The listing doesn't say which joystick each size fits, so measure the pin spacing on your board before choosing.
