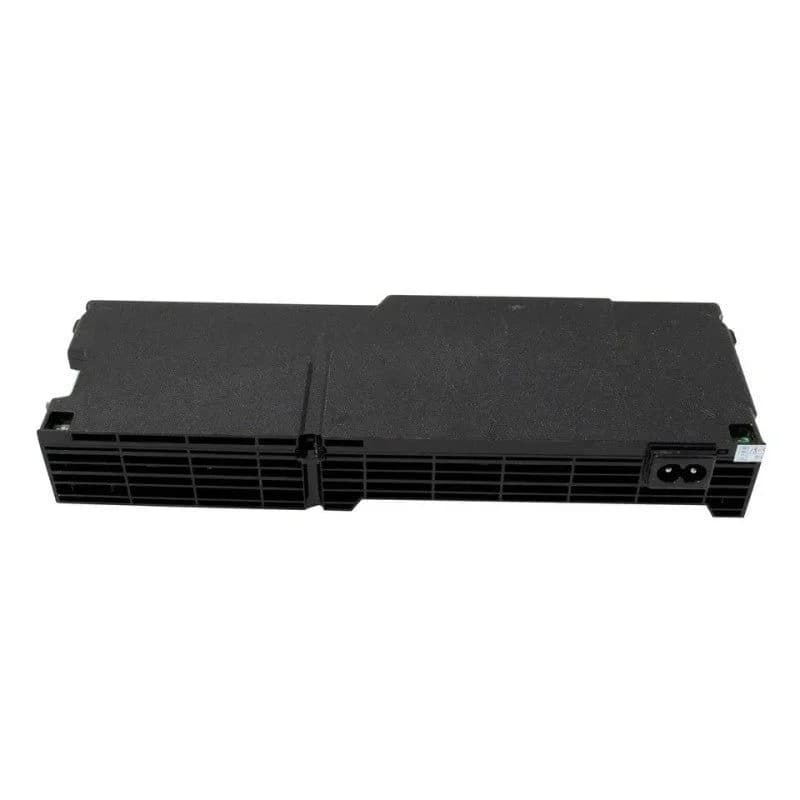

PS4 Power Supply ADP-240AR / CUH-1115A / 5 Pin

Name: PS4 Power Supply ADP-240AR / CUH-1115A / 5 Pin
Brand: Sony
SKU: PS20044
Price: 25.88 USD

Sony · SKU PS20044 · Fits 1 model

$25.88

per unit

Volume pricing
Quantity	Unit price	Saving
	$25.88
	$24.59	−5%
	$23.29	−10%

Ships from Shenzhen, China. Check rates for your country
No sales tax added at checkout
30-day returns on unused parts. Details
Ask about fit before ordering

Shipping weight 0.3 kg

Compatible with 1 model

Match the model number printed on the device (Settings → About, or on the back) before ordering.

PlayStation 4

Details

Early PS4 consoles were built with more than one internal power supply design, and the connector is the easiest way to tell them apart. The ADP-240AR uses a 5-pin connector, and when it fails, the console usually has no power or shuts down without warning.

This listing sells the ADP-240AR internal power supply with a 5-pin connector, listed for the PS4 CUH-1115A and related models. According to the listing, it fixes no power, failed startup and sudden shutdown issues.

Indications for replacement

No power or lights with a good cable and outlet.
Sudden shutdowns that aren't heat-related.
Visible damage or a burnt smell.
No power after a surge.

Recommended procedure

Confirm the model label and the 5-pin connector on your current supply before ordering, as CUH-11XX consoles were also made with a 4-pin ADP-240CR supply. Unplug the console completely and don't open the supply itself.

Fit the new supply, seat the connectors fully and test power-on, then run the console for a while.
