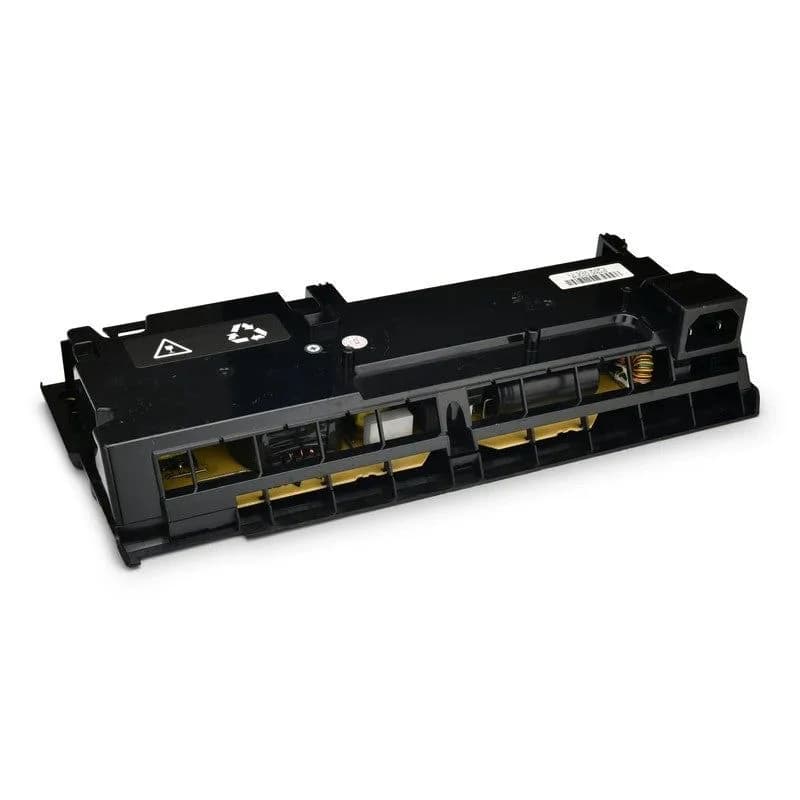

PS4 Slim Power Supply ADP-160ER / CUH-2015B / CUH-2115 / N16-160P1A

Later PS4 Slim revisions, including the CUH-2015B and CUH-2115, use a different internal supply from the earliest Slim. It's labelled ADP-160ER or N16-160P1A, and when it fails, the console usually has no power or turns off at random.

This listing sells the ADP-160ER / N16-160P1A internal power supply for PS4 Slim CUH-2015B and CUH-2115 consoles. As the listing puts it, it fixes no power, startup failure and unexpected shutdowns.

When to replace it

• No power with a good cable and outlet.

• Random shutdowns that aren't heat-related.

• Visible damage or a burnt smell.

• No power after a surge.

Before you start

Try a different cable and outlet first. Then check the label on your current supply; the earlier CUH-2015A is listed with the ADP-160CR. Unplug the console fully before opening it, and take a photo of the cable routing so reassembly is straightforward. Keep track of the screws, as the Slim uses a few different lengths.

Install the new supply, seat the connectors and test power-on. A console that boots and stays on through a long game confirms the fix.
