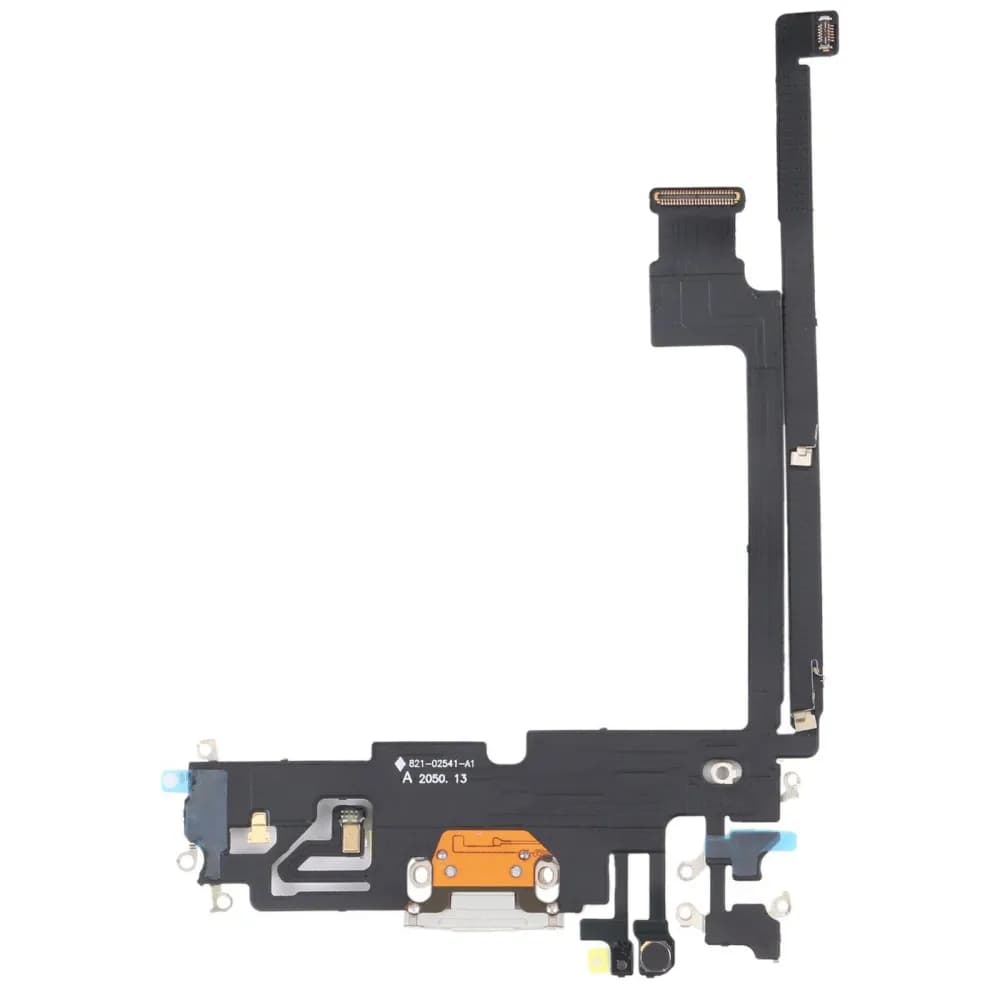

iPhone 12 mini / 12 / 12 Pro / 12 Pro Max Charging Port Flex

Apple · SKU IP20148 · Fits 4 models

$5.51

per unit

Volume pricing
Quantity	Unit price	Saving
	$5.51
	$5.23	−5%
	$4.96	−10%

Selected SKU IP20148

Ships from Shenzhen, China. Check rates for your country
No sales tax added at checkout
30-day returns on unused parts. Details
Ask about fit before ordering

Shipping weight 0.03 kg

Compatible with 4 models

Match the model number printed on the device (Settings → About, or on the back) before ordering.

iPhone 12 miniA2176, A2398, A2400, A2399
iPhone 12A2172, A2402, A2404, A2403
iPhone 12 ProA2341, A2406, A2408, A2407
iPhone 12 Pro MaxA2342, A2410, A2412, A2411

Details

Say an iPhone 12 only charges when the cable is held at an angle, even after the port has been cleaned out. When that happens, the charging port flex is usually worn or damaged.

This listing sells the charging port flex for the iPhone 12 mini, 12, 12 Pro and 12 Pro Max, with a separate option for each model in several colours. The listing doesn't name a maker, so it's treated as aftermarket. It also doesn't list what else is on the flex.

When to replace it

Charging that cuts in and out.
A cable that won't connect to a computer.
A loose or damaged Lightning port.
Corrosion from liquid around the port.

Fitting notes

Clean the port with a non-metal pick before buying, because packed lint is a common cause. If the fault remains, open the phone, disconnect the battery and remove the speaker and brackets to reach the flex.

After fitting, test charging, data transfer, calls and voice memos, since the bottom microphone is nearby. Choose your model and colour before ordering.

Specifications

Condition	New
Quality	Aftermarket (not stated in listing)
Part type	Charging port flex
Compatible devices	iPhone 12 mini, iPhone 12, iPhone 12 Pro, iPhone 12 Pro Max
Colour options (12 mini / 12)	Black, Green, Purple, Red, White, Blue
Colour options (12 Pro / Pro Max)	Silver, Pacific Blue, Gold, Graphite
