DJI Air 3 Gimbal Vibration Damping Board

Shaky or jello-affected footage on an Air 3 doesn't always mean a bad motor. The gimbal hangs from a damping board that isolates the camera from vibration in the body, and when that board cracks or warps, the vibration goes straight through to the image.

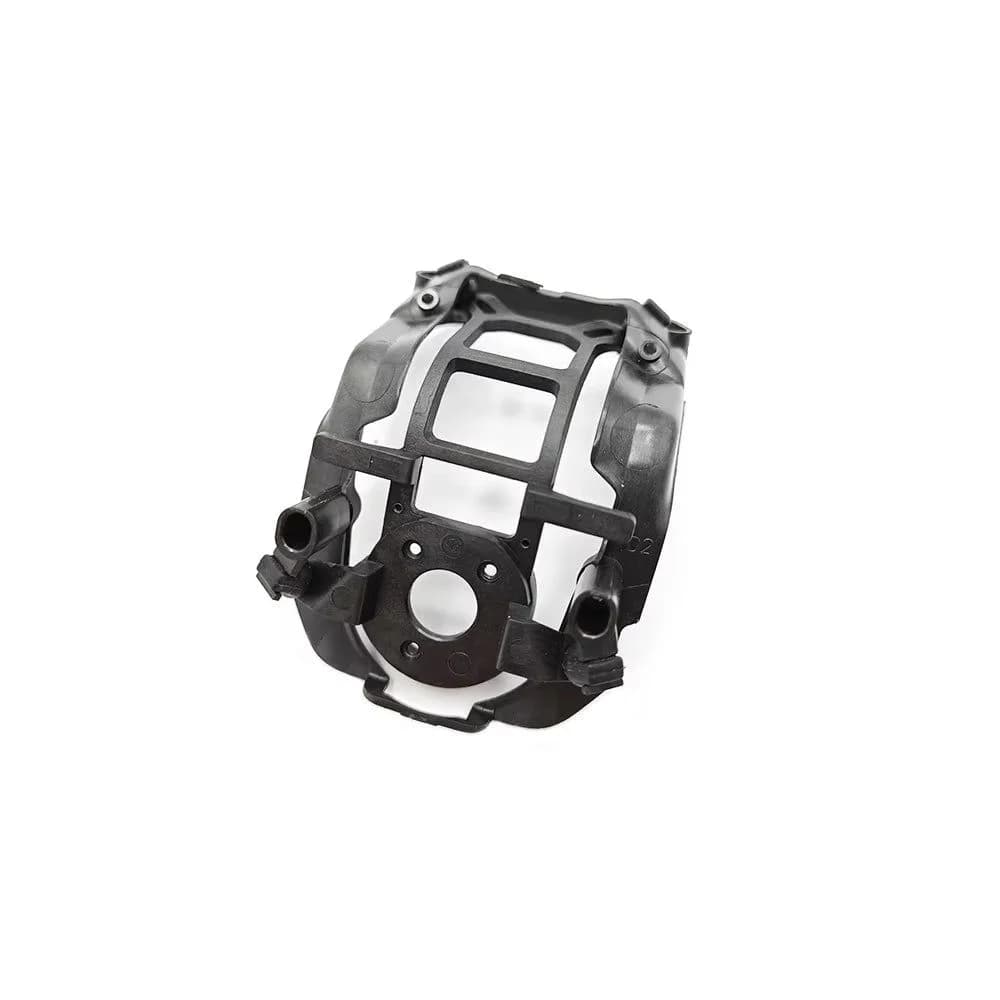

This gimbal vibration damping board is listed for the DJI Air 3, where it serves as the damper mount bracket. The listing mentions original specifications but doesn't name a maker; we sell it as aftermarket.

Diagnosing a failing Air 3 damping board

• Jello or fine shake that new propellers don't fix.

• A cracked or warped board after a crash.

• A gimbal that sits at an angle to the body.

• Worn mounting points that let the gimbal move.

Check the cheap causes first

Damaged propellers are the most common source of vibration, so try a fresh set first. Then inspect the rubber dampers, which harden and split with age. If both are fine and the board is cracked, this is the part to replace.

Fit the board with the drone off, seat each damper fully and make sure the gimbal hangs freely. Calibrate the gimbal and fly a short hover to compare footage.
