Samsung Galaxy S20 Ultra OLED Screen with Frame and Tools Kit

$75.40

per unit

Option

Phantom BlackGrayWhite

Volume pricing
Quantity	Unit price	Saving
	$75.40
	$71.63	−5%
	$67.86	−10%

Selected SKU SM01001

Ships from Shenzhen, China. Check rates for your country
No sales tax added at checkout
Shipping & returns
Ask about fit before ordering

Shipping weight 0.18 kg

Compatible with 2 models

Match the model number printed on the device (Settings → About, or on the back) before ordering.

Details

On the Galaxy S20 Ultra, the screen is bonded to the frame, and separating a cracked curved panel without damaging anything is slow work. That's why many shops prefer a screen that comes already fitted in a new frame: the old phone's internals move across, and the cracked screen leaves with the old frame.

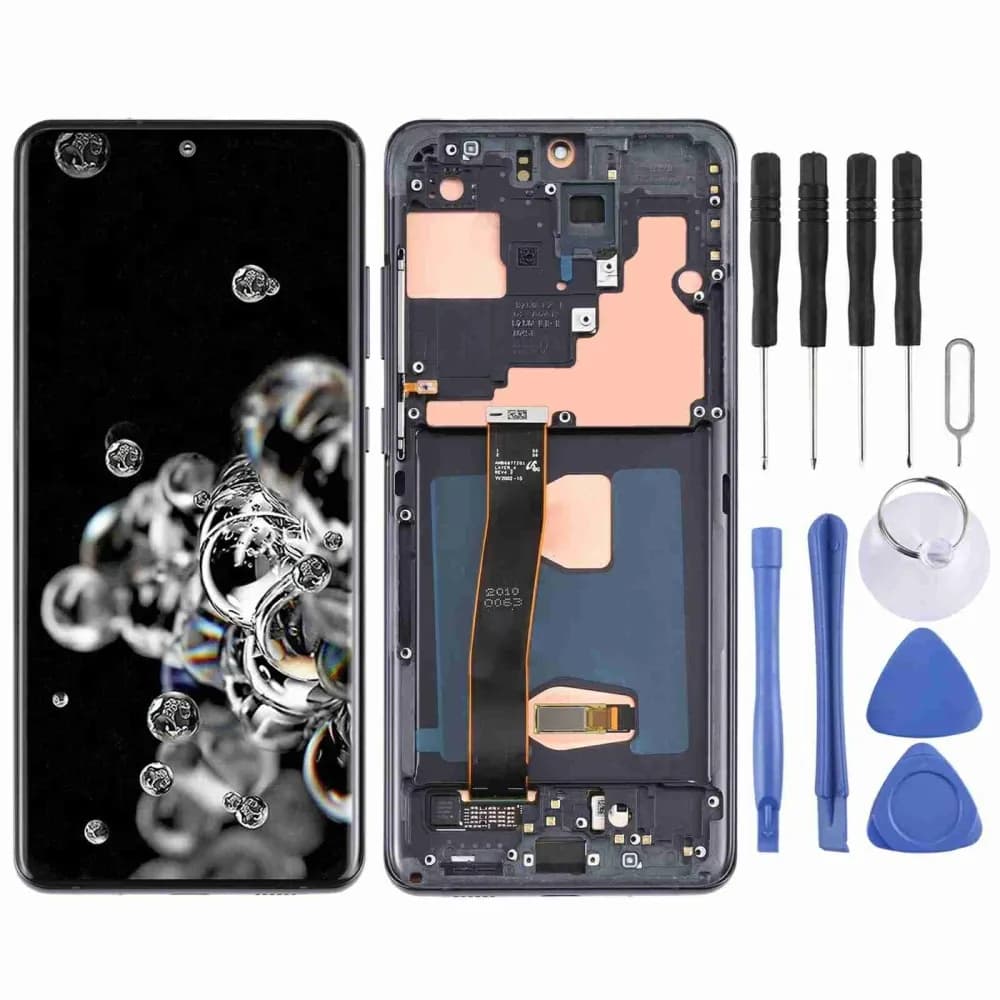

This aftermarket OLED screen comes in a new frame with a repair tool kit, in Phantom Black, Gray and White. The listing gives the panel size as 6.81 inches, while the original S20 Ultra screen is about 6.9 inches, so the visible area may be slightly smaller.

Faults the S20 Ultra screen assembly fixes

Cracked or shattered glass, lines across the OLED, black or purple blotches after pressure, a screen that stays dark while the phone runs, and touch that responds only in parts of the screen.

Bench routine: test the new screen with the board connected before transferring everything, without removing protective film. Move the board, cameras, charging port and speaker. The battery is glued to the frame, so a new battery avoids the risk of bending the old one. Don't bend the display flex more than 90 degrees, and check the fingerprint sensor after re-registering fingers.

Done this way, the S20 Ultra leaves the bench with a fresh screen and a straight, clean frame.

Specifications

Compatible devices	Galaxy S20 Ultra
Model numbers	SM-G988, SM-G988U, SM-G988U1, SM-G9880, SM-G988B/DS, SM-G988N, SM-G988B, SM-G988W
Panel size (listing)	6.81 in
Part type	OLED screen with frame
Quality	Aftermarket
In-display fingerprint	Supported (supplier specification)
Included	Screen with frame, repair tool kit
Frame color options	Phantom Black, Gray, White

Questions

Is the panel the same size as the original?

The listing gives 6.81 inches; the original S20 Ultra display is about 6.9 inches, so the visible area may be slightly smaller.

Does the in-display fingerprint sensor work with this screen?

The supplier states that the in-display fingerprint sensor is supported. After the repair, delete the old fingerprints and register them again.

Should I test the screen before installing it?

Yes. Connect it to the phone and check display, touch and fingerprint before removing protective film or gluing anything. Don't bend the display flex more than 90 degrees, as a sharp bend can leave the screen black.

Is this a genuine Samsung screen?

No. It's an aftermarket OLED screen with frame made to fit the Galaxy S20 Ultra.
