Part

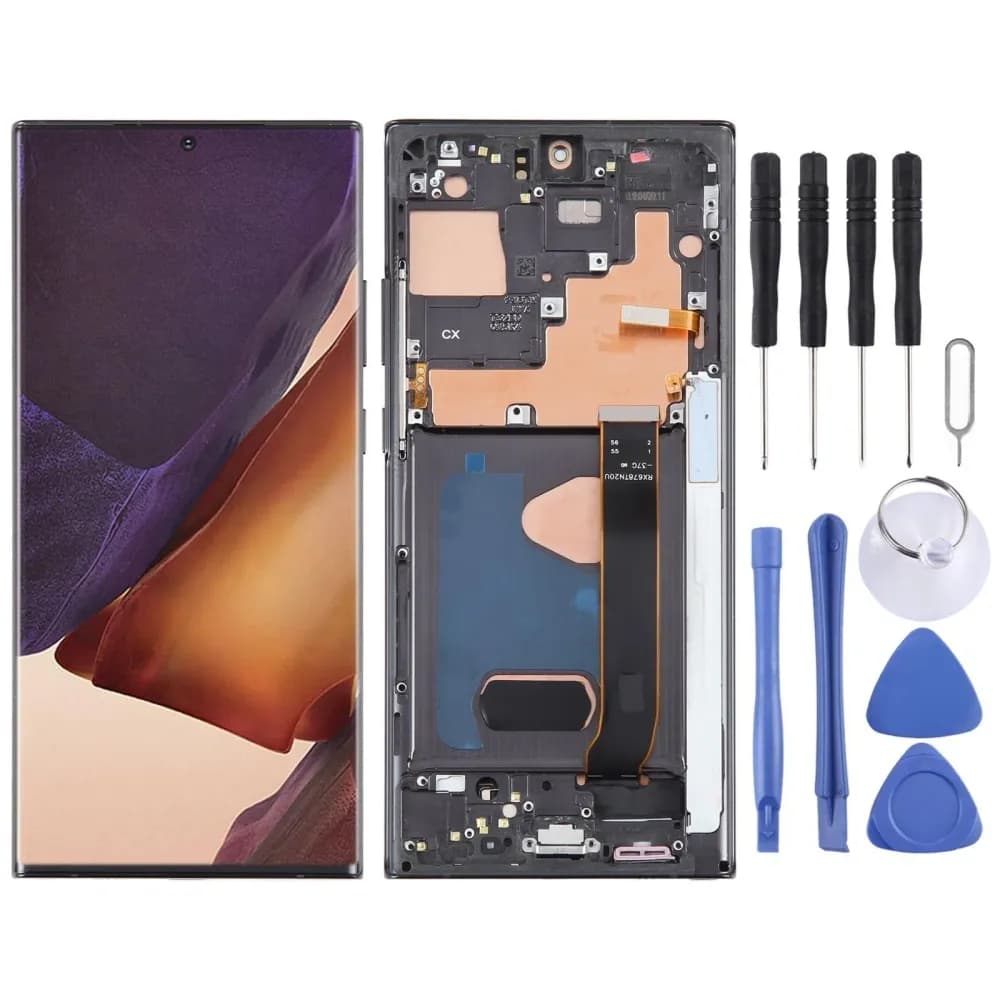

Samsung Galaxy Note 20 Ultra OLED Screen with Frame and Tools Kit
Samsung · SKU SM01010 · Fits 1 model
$72.45
per unit| Quantity | Unit price | Saving |
|---|---|---|
| $72.45 | ||
| $68.83 | −5% | |
| $65.21 | −10% |
Selected SKU SM01010
- Ships from Shenzhen, China. Check rates for your country
- No sales tax added at checkout
- 30-day returns on unused parts. Details
- Ask about fit before ordering
Shipping weight 0.18 kg
Compatible with 1 model
Match the model number printed on the device (Settings → About, or on the back) before ordering.
Details
The Galaxy Note20 Ultra has one of the largest screens Samsung put on a Note, around 6.9 inches with curved edges. This listing offers two replacement panel sizes for it, 6.78 and 6.67 inches, at different prices. Neither is quite the original size, and knowing what that means helps you pick.
This aftermarket OLED screen comes pre-installed in a new frame with a repair tool kit, in Phantom Black, White and Bronze frames. Model numbers are in the specs.
Choosing a panel size
The larger 6.78-inch option is closer to the original visible area. The 6.67-inch option is cheaper but shows a slightly smaller picture, which can mean a thicker border around the image. For a phone that will be used daily for reading and notes, the larger panel is usually the better choice.
When a replacement is due
Replace it when the glass is cracked, when lines or dark blotches appear on the OLED, when the screen stays black while the phone works, or when touch or S Pen input fails in patches. Move the board and parts into the new frame, and consider a new battery, since the old one is glued in. Test display, touch and fingerprint before closing.
Picking the right size up front gets the Note20 Ultra back in service with the look you expect.
Specifications
| Compatible devices | Galaxy Note20 Ultra |
|---|---|
| Model numbers | SM-N985F, SM-N985F/DS, SM-N986B, SM-N986U, SM-N986U1, SM-N986W, SM-N9860, SM-N986N |
| Panel size options (listing) | 6.78 in, 6.67 in |
| Part type | OLED screen with frame |
| Quality | Aftermarket |
| In-display fingerprint | Supported (supplier specification) |
| Included | Screen with frame, repair tool kit |
| Frame color options | Phantom Black, White, Bronze |
Questions
What's the difference between the 6.78-inch and 6.67-inch options?
The number is the panel size of the replacement OLED. The factory screen is about 6.9 inches, so the 6.78-inch option is closer to the original visible area; the 6.67-inch option is smaller and costs less.
Does the in-display fingerprint sensor work with this screen?
The supplier states that the in-display fingerprint sensor is supported. After the repair, delete the old fingerprints and register them again.
Should I test the screen before installing it?
Yes. Connect it to the phone and check display, touch and fingerprint before removing protective film or gluing anything. Don't bend the display flex more than 90 degrees, as a sharp bend can leave the screen black.
Is this a genuine Samsung screen?
No. It's an aftermarket OLED screen with frame made to fit the Galaxy Note20 Ultra.
