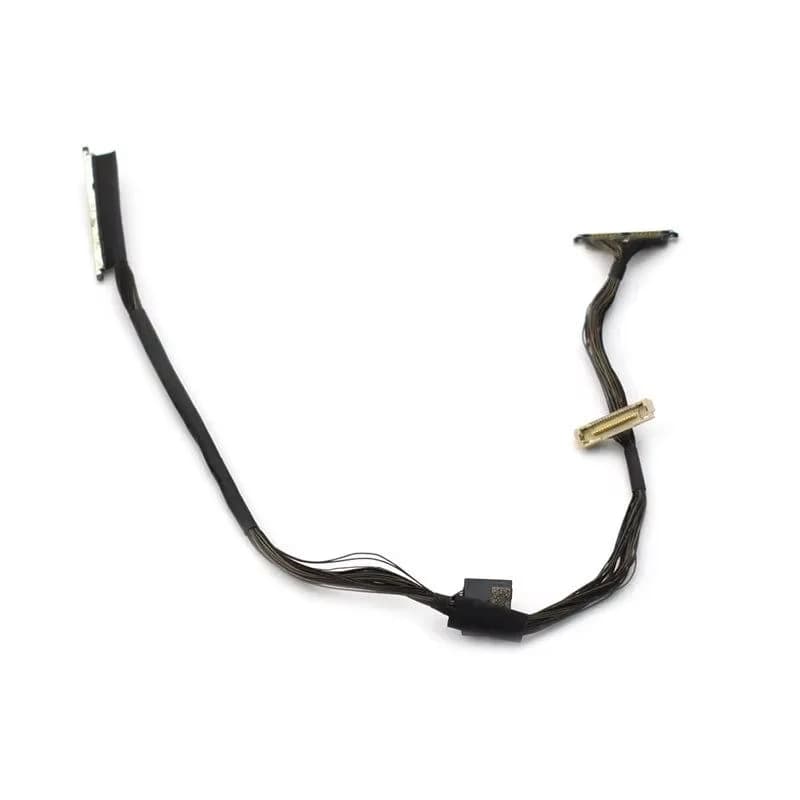

DJI Mini 3 / 3 Pro Gimbal Camera Video Signal Cable
DJI · SKU DJ11106 · Fits 2 models
$9.45
per unit| Quantity | Unit price | Saving |
|---|---|---|
| $9.45 | ||
| $8.98 | −5% | |
| $8.50 | −10% |
- Ships from Shenzhen, China. Check rates for your country
- No sales tax added at checkout
- Shipping & returns
- Ask about fit before ordering
Shipping weight 0.05 kg
Compatible with 2 models
Match the model number printed on the device (Settings → About, or on the back) before ordering.
Details
Both the Mini 3 and Mini 3 Pro send their camera's video and the gimbal's control signals through one flex cable. If it's creased in a crash, the result can be a blank feed, a frozen picture or a gimbal that refuses to move.
This gimbal camera video signal transmission cable is listed for the DJI Mini 3 and Mini 3 Pro. It mentions original specifications but names no maker, so it's sold as aftermarket.
Mini 3 faults that point to the cable
No image or a frozen feed, gimbal errors at startup, faults that change as the gimbal tilts or rotates to vertical, and a visibly creased or torn flex are the main signs.
Fitting tips
The flex has to move with the gimbal, including the 90-degree rotation for vertical shooting, so route it exactly as the original and leave the same slack. Seat each connector evenly before closing the latches.
Calibrate the gimbal afterward and test in both horizontal and vertical orientations. A Mini 3 cable test board is also listed for checking cables on the bench.
Specifications
| Compatible devices | DJI Mini 3, DJI Mini 3 Pro |
|---|---|
| Part type | Gimbal camera video signal cable |
| Quality | Aftermarket (DJI origin not stated) |
Questions
Is this a DJI-made cable?
The listing doesn't state DJI origin, so we sell it as an aftermarket cable.
Does it fit the Mini 4 Pro?
The listing names the Mini 3 and Mini 3 Pro only.
Should I test vertical mode after fitting?
Yes. The cable moves with the gimbal's rotation, so check both orientations.
