DJI Gimbal Signal Cable Test Board (Mini, Air 2, Mavic Pro / 2)

Repair shops that handle several DJI models face the same question again and again: is the gimbal signal cable bad, or is the fault further in? This test board lets technicians check gimbal and camera signal cables without installing them in the drone.

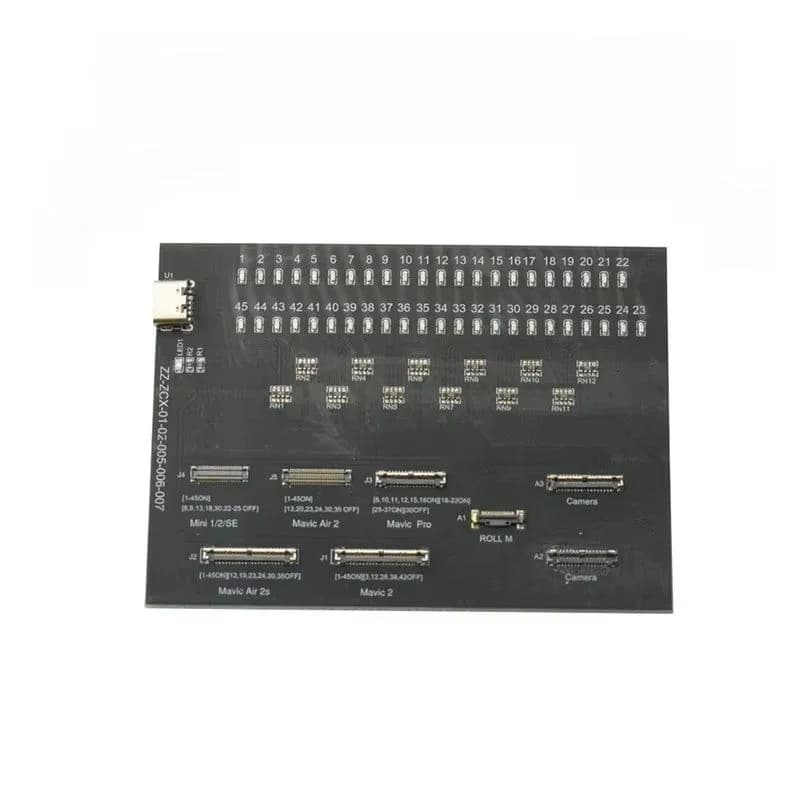

This gimbal signal cable test board is a repair tool listed for the DJI Mini 1, Mini 2, Mini SE, Air 2, Air 2S, Mavic Pro and Mavic 2. It's sold new; the listing doesn't name a maker.

When the test board helps

• Checking a new cable before fitting it.

• Diagnosing intermittent image loss or gimbal errors.

• Confirming a cable is sound before replacing a camera or gimbal board.

• Shops servicing several of the models listed.

Using it

The listing doesn't describe how results are displayed or which connector serves which model, so check the photos before relying on it for a specific drone. Handle cables gently when connecting them and use ESD precautions.

For a shop, testing a cheap cable before swapping a far more expensive camera can save both money and time. It's a bench tool and isn't fitted to the drone.
