DJI Mavic 2 Pro / Zoom ESC Board Module

$34.20

per unit

Volume pricing
Quantity	Unit price	Saving
	$34.20
	$32.49	−5%
	$30.78	−10%

Ships from Shenzhen, China. Check rates for your country
No sales tax added at checkout
Shipping & returns
Ask about fit before ordering

Shipping weight 0.2 kg

Compatible with 1 model

Match the model number printed on the device (Settings → About, or on the back) before ordering.

DJI Mavic 2 Pro

Details

A Mavic 2 that powers up normally but won't start its motors, or starts three and leaves one stalled, sends many owners shopping for motors. On the bench the electronic speed controller board is checked first, because one ESC fault can look like several motor faults at once.

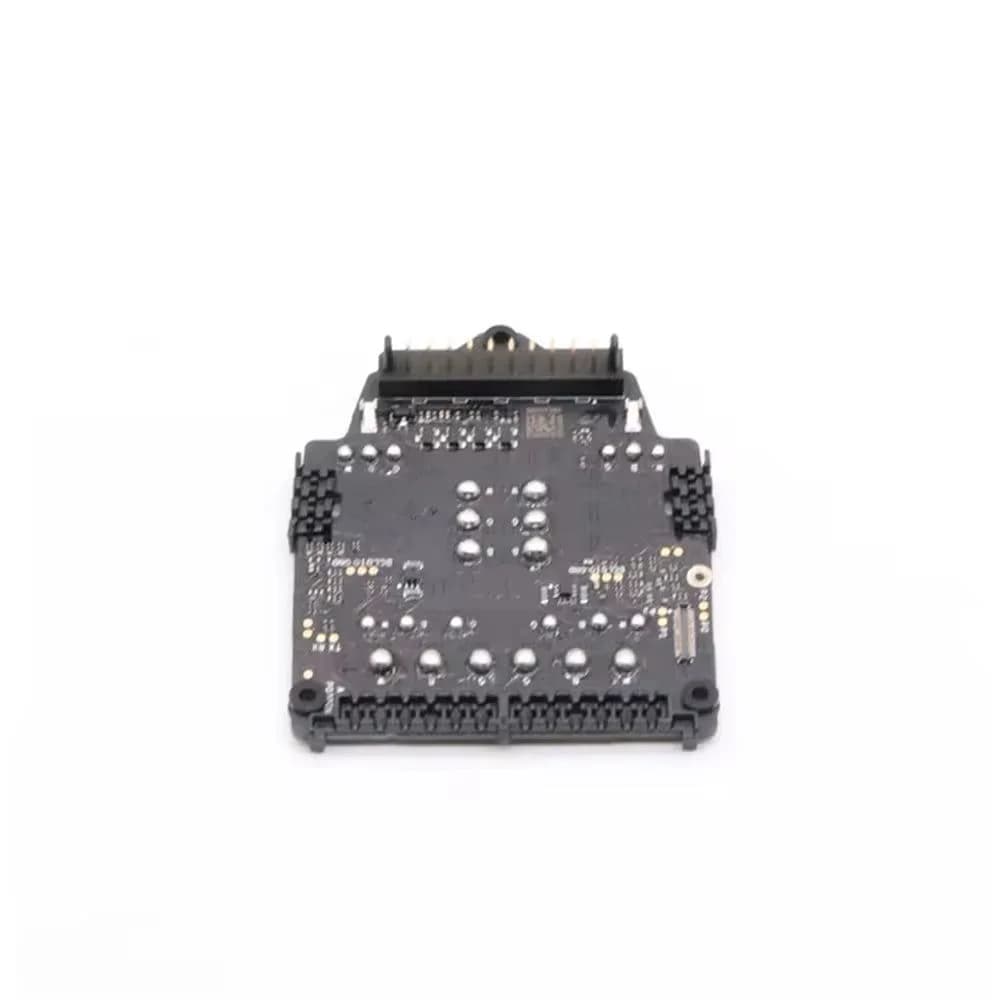

This ESC board module is listed for the DJI Mavic 2 Pro and Mavic 2 Zoom. It drives and regulates the brushless motors. No maker is given in the listing, so it's sold as aftermarket.

Is it the Mavic 2 ESC board?

More than one motor fails to start or runs unevenly.
ESC errors appear in the app at startup.
A motor that spins smoothly by hand still won't run.
Burn marks or corrosion on the board after a crash or wet landing.

Before and after the swap

Turn each motor by hand to rule out a gritty bearing, and check the motor wires for breaks where the arms fold. Work with the battery out, photograph every connection and inspect solder pads closely. After fitting, spin the motors without propellers and listen for even sound before a low hover.

With a working ESC board, a grounded Mavic 2 Pro or Zoom can fly smoothly again on its original motors.

Specifications

Compatible devices	DJI Mavic 2 Pro, DJI Mavic 2 Zoom (per listing)
Part type	ESC (electronic speed controller) board module
Quality	Aftermarket (DJI origin not stated)
