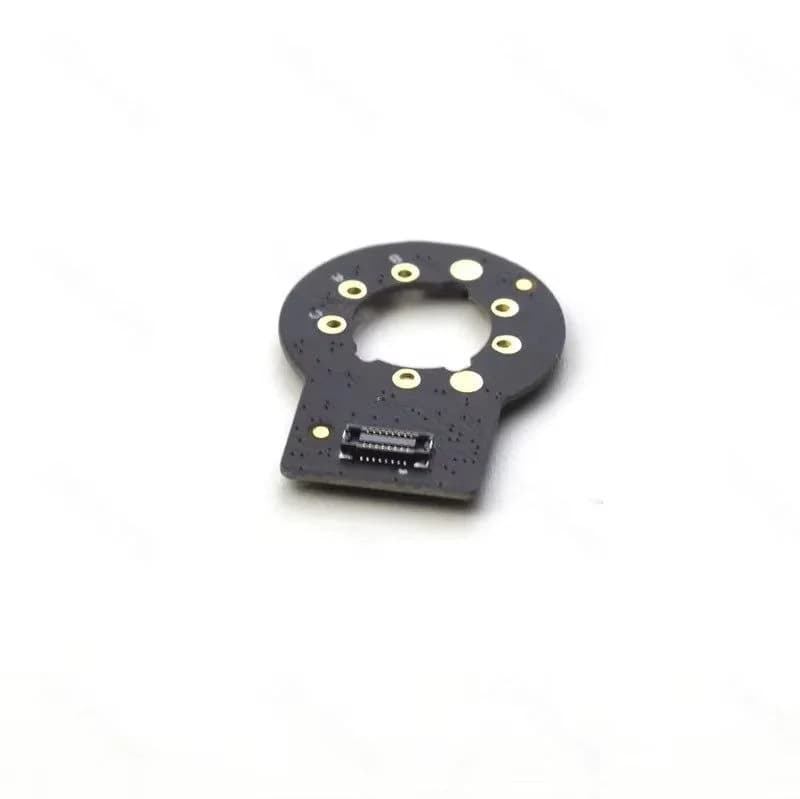

DJI Air 3 Gimbal Yaw Motor Control Board

A yaw error on an Air 3 doesn't always mean a dead motor. The yaw motor is driven by a small control board, and a damaged board produces the same complaints: a gimbal that won't turn smoothly, jerks sideways or fails its startup check.

This gimbal yaw motor control board is listed for the DJI Air 3. The listing gives no maker, so it's an aftermarket board.

Air 3 faults that point to the board

• Yaw errors that persist after a new motor is fitted.

• A gimbal that won't rotate sideways or jerks on the yaw axis.

• Visible damage such as corrosion or burn marks on the board.

• Faults that started after moisture exposure.

Bench approach

Rule out the cheaper items first: check the gimbal flex cable for damage and confirm the yaw motor turns freely without grit. If those are fine, inspect the board under magnification. Handle it by the edges, use ESD protection and seat its connectors fully.

Calibrate the gimbal on a level surface after fitting and check yaw movement through its range in DJI Fly.
