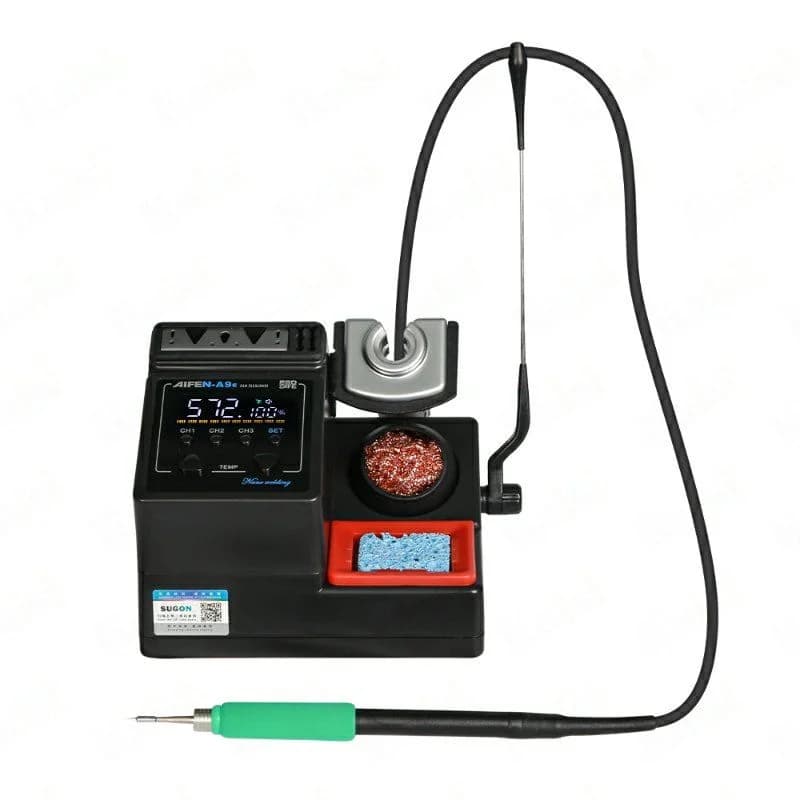

AIFEN A9E Soldering Station

Name: AIFEN A9E Soldering Station
Brand: AIFEN
SKU: AF10002-1
Price: 57.8 USD

AIFEN · SKU AF10002-1

$57.80

per unit

Option

EU Plug/220V$57.80US Plug/110V$57.80

Volume pricing
Quantity	Unit price	Saving
	$57.80
	$54.91	−5%
	$52.02	−10%

Selected SKU AF10002-1

Ships from Shenzhen, China. Check rates for your country
No sales tax added at checkout
30-day returns on unused parts. Details
Ask about fit before ordering

Shipping weight 2 kg

Details

Switching between fine board work and heavy ground pads usually means a second station. The AIFEN A9E takes T115, T210 and T245 handles, so one base can drive a micro handle or a larger one.

It runs at 120 W (160 W max) from 100 to 240 V AC, 50/60 Hz, with a range of 100 to 450°C (212 to 842°F) and a Celsius/Fahrenheit switch. Three memory presets and a power bar with percentage help you see what the tip is drawing. The station measures 240 x 210 x 177 mm. It comes with a T210 handle, three 210 heating cores, a stand, a manual and a power cable.

When the A9E fits your bench

A shorted board with big ground planes that cool small tips.
Tiny components needing a T115 nano handle.
Damaged connectors needing quick heat recovery.
Repeated temperature changes slowing every job.

Tips

Set presets for fine work, general soldering and heavy joints, and watch the power bar: a constantly full bar means the tip is too small for the joint.

Choose EU 220 V or US 110 V. Only the T210 handle is included.

Specifications

Brand	AIFEN
Model	A9E
Condition	New
Product type	Soldering station
Power	120 W (160 W max)
Input voltage	AC 100-240 V, 50/60 Hz
Temperature range	100-450 °C
Handles	T115, T210, T245
Presets	3
Station size	240 x 210 x 177 mm
Contents	Station, T210 handle, 3 x 210 heating cores, hub, manual, power cable
Plug/voltage options	EU 220 V, US 110 V
