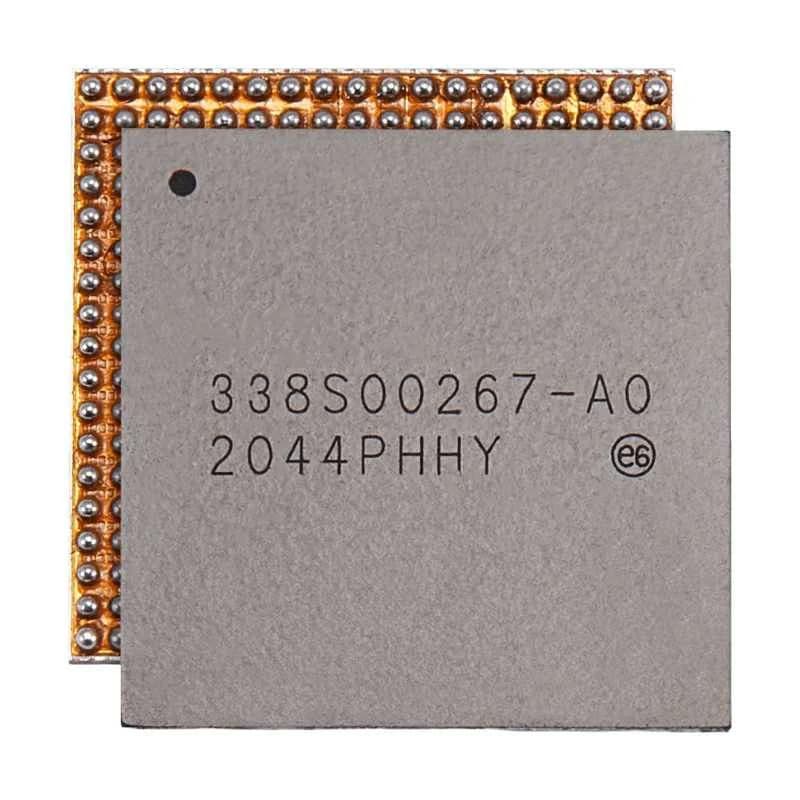

338S00267-A0 Power Management IC for MacBook Pro 13 A1989 / A2159

$8.92

per unit

Volume pricing
Quantity	Unit price	Saving
	$8.92
	$8.47	−5%
	$8.03	−10%

Ships from Shenzhen, China. Check rates for your country
No sales tax added at checkout
30-day returns on unused parts. Details
Ask about fit before ordering

Shipping weight 0.01 kg

Compatible with 2 models

Match the model number printed on the device (Settings → About, or on the back) before ordering.

Details

The 2018 and 2019 13-inch MacBook Pros use a large Apple power management chip in a 324-pin BGA package. When it fails, the board often won't power on, and replacement is one of the more demanding jobs on these machines.

This listing sells the Apple 338S00267-A0 power management IC for the MacBook Pro 13-inch A1989 (Late 2018, Early 2019) and A2159 (Mid 2019). It doesn't give a board position.

When it comes into question

Missing rails with inputs and enables present.
A short on a rail traced to the chip.
Liquid damage under the chip.
A failed previous attempt at reflowing it.

Practical notes

With 324 balls, this chip needs a preheater, a good stencil if you reball, and a profile suited to the board's size. Clean the pads carefully, as lifted pads are hard to repair under a part this large.

After fitting, check the rails before a full boot attempt, and run the machine under load for a while to confirm it stays stable and the chip doesn't run hot.

Specifications

Condition	New
Part type	Power management IC
Part number	338S00267-A0
Package	BGA
Pin count	324
Compatible devices	MacBook Pro 13-inch (Late 2018, Early 2019), MacBook Pro 13-inch (Mid 2019)
Model numbers	A1989, A2159
