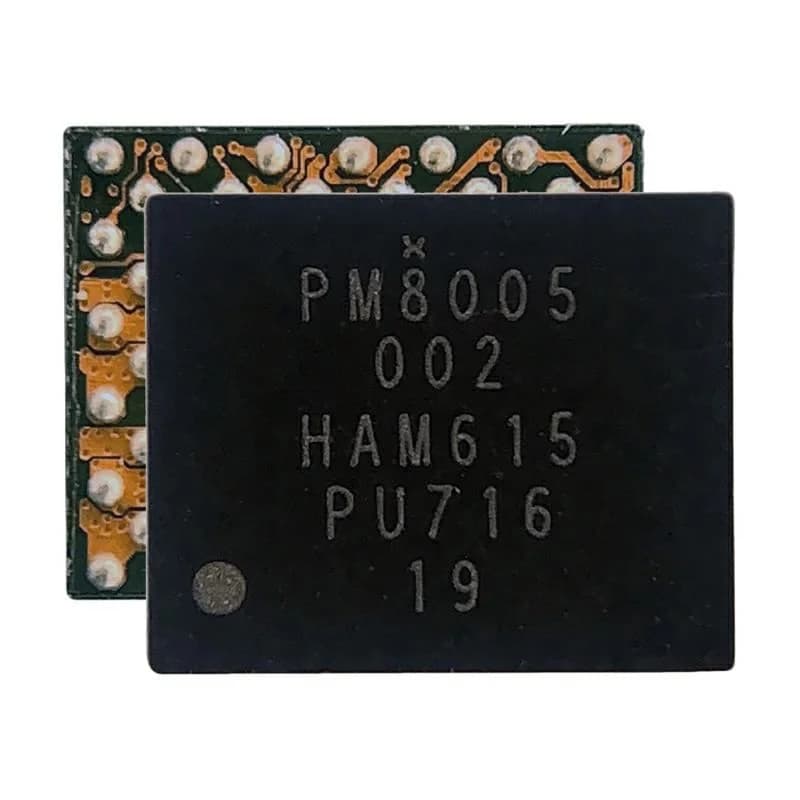

PM8005 Auxiliary Power IC for Galaxy S8+ / S9 / S9+ / Note 8 / 9 / 10

$5.50

per unit

Volume pricing
Quantity	Unit price	Saving
	$5.50
	$5.23	−5%
	$4.95	−10%

Ships from Shenzhen, China. Check rates for your country
No sales tax added at checkout
Shipping & returns
Ask about fit before ordering

Shipping weight 0.01 kg

Compatible with 7 models

Match the model number printed on the device (Settings → About, or on the back) before ordering.

Details

The PM8005 is a smaller Qualcomm power chip that supports the main PMIC on several Snapdragon Galaxy phones. If it fails, the phone may not start, or one group of functions may stop because a rail has gone missing.

This listing sells the PM8005 auxiliary power IC, with 71 pins, for the Galaxy S8+, S9, S9+, Note 8, Note 9, Note 10 and Note 10+ 5G. Being a Qualcomm part, it suits Snapdragon boards. Confirm by the marking, since several of these phones also came with Exynos processors and different power chips.

When it's worth checking

A missing rail with the main PMIC working.
No power with a good battery.
A short traced to the chip.
Damage after liquid.

Diagnosis

Measure the rails of the main and auxiliary chips separately to find out which one has failed. The phones on this list span three years and several board designs, so check the position in your board view.

Fit with a preheater and fresh flux, then test power-on, charging and the functions that depend on its rails.

Specifications

Condition	New
Part type	Auxiliary power IC
Part number	PM8005
Brand (chip)	Qualcomm
Pin count	71
Compatible devices	Galaxy S8+, Galaxy S9, Galaxy S9+, Galaxy Note 8, Galaxy Note 9, Galaxy Note 10, Galaxy Note 10+ 5G
