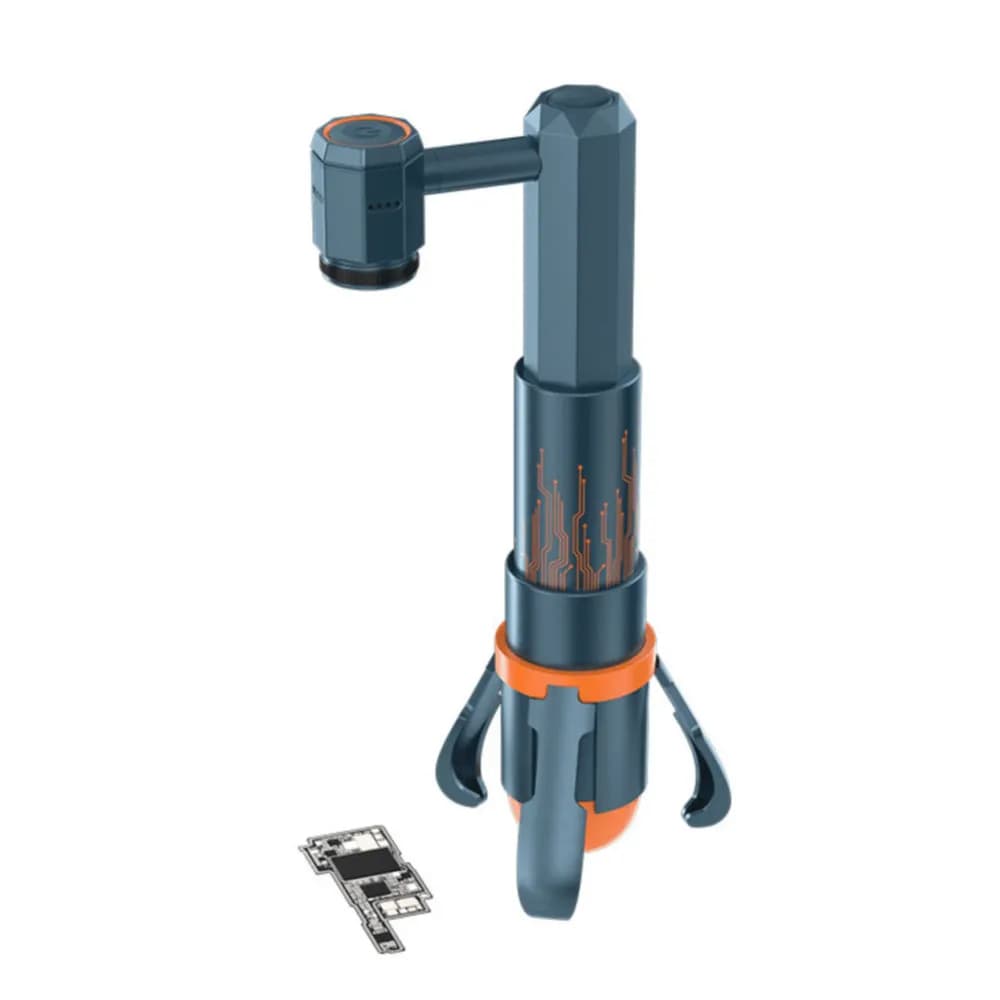

SUNSHINE TB-03S Infrared Rapid Thermal Camera for Phone Motherboard Repair

1 / 5

Machine

SUNSHINE TB-03S Infrared Rapid Thermal Camera

SUNSHINE · SKU SS10193

$272.92

per unit
Volume pricing
QuantityUnit priceSaving
$272.92
$259.27−5%
$245.63−10%

Shipping weight 0.7 kg

Details

A board pulls current on the power supply the moment it's connected, and somewhere among hundreds of capacitors one is shorted. Inject a little voltage and the faulty part warms first; the SUNSHINE TB-03S is a handheld thermal camera for spotting that warm part.

The listing describes rapid infrared imaging that shows heat differences between components, aimed at small ICs, capacitors and resistors on phone boards. It doesn't give the sensor resolution, temperature range, screen size, battery or what's in the box.

When thermal imaging helps

  • A shorted capacitor on a power rail.

  • Leakage that drains the battery overnight.

  • A failing chip that runs hot.

  • Faults after liquid damage.

Getting results

Pair it with a DC power supply and inject low voltage into the shorted rail. Watch the board before and after power, and compare a suspect part with its neighbors. Back up what you see with schematics or a board view before lifting anything.

A Mini version is also listed, as is the TB-08 Ultra with a 4-inch screen. Ask the seller for the resolution before choosing.

Specifications

BrandSUNSHINE
ModelTB-03S
ConditionNew
Product typeInfrared thermal camera
DesignHandheld

Questions

What is it used for?

Finding hot, shorted or leaking parts on a board.

What's the resolution?

The listing doesn't say.

Do I need a power supply?

A DC supply helps inject voltage into shorted rails.
