RP2350A USB-C Development Board (Pico 2 Compatible)
SKU SHOPIFY-52796468134199
$12.85
per unit| Quantity | Unit price | Saving |
|---|---|---|
| $12.85 | ||
| $12.21 | −5% | |
| $11.57 | −10% |
- Ships from Shenzhen, China. Check rates for your country
- No sales tax added at checkout
- 30-day returns on unused parts. Details
- Ask about fit before ordering
Shipping weight 0.2 kg
Details
Say you want to build a small sensor logger or LED controller. You don't need a full single-board computer, just a cheap microcontroller you can program in MicroPython over USB. That's the space Raspberry Pi's RP2350 chip and boards like this one cover.

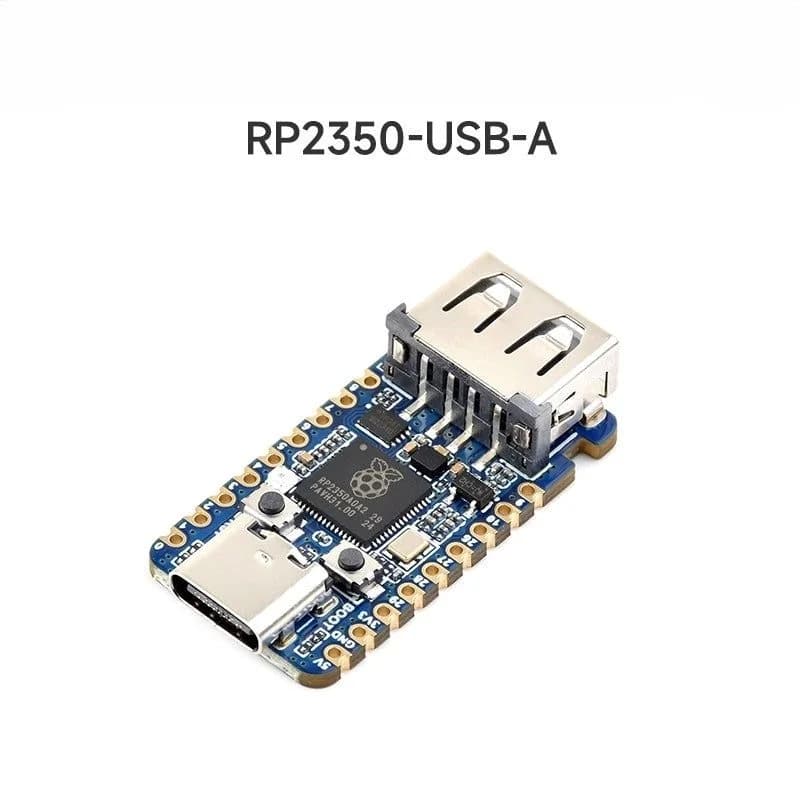

This mini board is built around the RP2350A. That chip can run on two Arm Cortex-M33 cores or two Hazard3 RISC-V cores, at up to 150 MHz, with 520 KB of SRAM. It has a USB-C port for programming and works with MicroPython, C/C++ and the Raspberry Pi Pico tools. According to the listing, it has UART, SPI and I2C, as well as PWM, ADC and DMA.
Typical projects
Replacing a dead or damaged Pico-class board in an existing project.
Upgrading an older microcontroller that's too weak or slow for the job.
IoT sensors, data loggers and robotics.
Home automation and LED projects.
Teaching embedded programming.
Getting started
Connect it over USB-C and load MicroPython or a C/C++ build using the standard Pico tools. Then wire up sensors through the GPIO pins. Check the board's pinout before connecting anything, because mini boards don't all share the Pico's layout.
The listing doesn't give the onboard flash size or the pinout, so check the product photos.
Specifications
| Condition | New |
|---|---|
| Product type | Microcontroller development board |
| Chip | Raspberry Pi RP2350A |
| CPU | Dual Arm Cortex-M33 or dual Hazard3 RISC-V, up to 150 MHz |
| SRAM | 520 KB |
| USB | USB Type-C |
| Interfaces | UART, SPI, I2C, PWM, ADC, DMA |
| Software | MicroPython, C/C++, Pico SDK |
Questions
Is it an official Raspberry Pi Pico 2?
No. It's a third-party board that uses the RP2350A chip and works with the Pico tools.
Can I use MicroPython?
Yes.
What's the clock speed?
Up to 150 MHz.
How much flash does it have?
The listing doesn't say.
