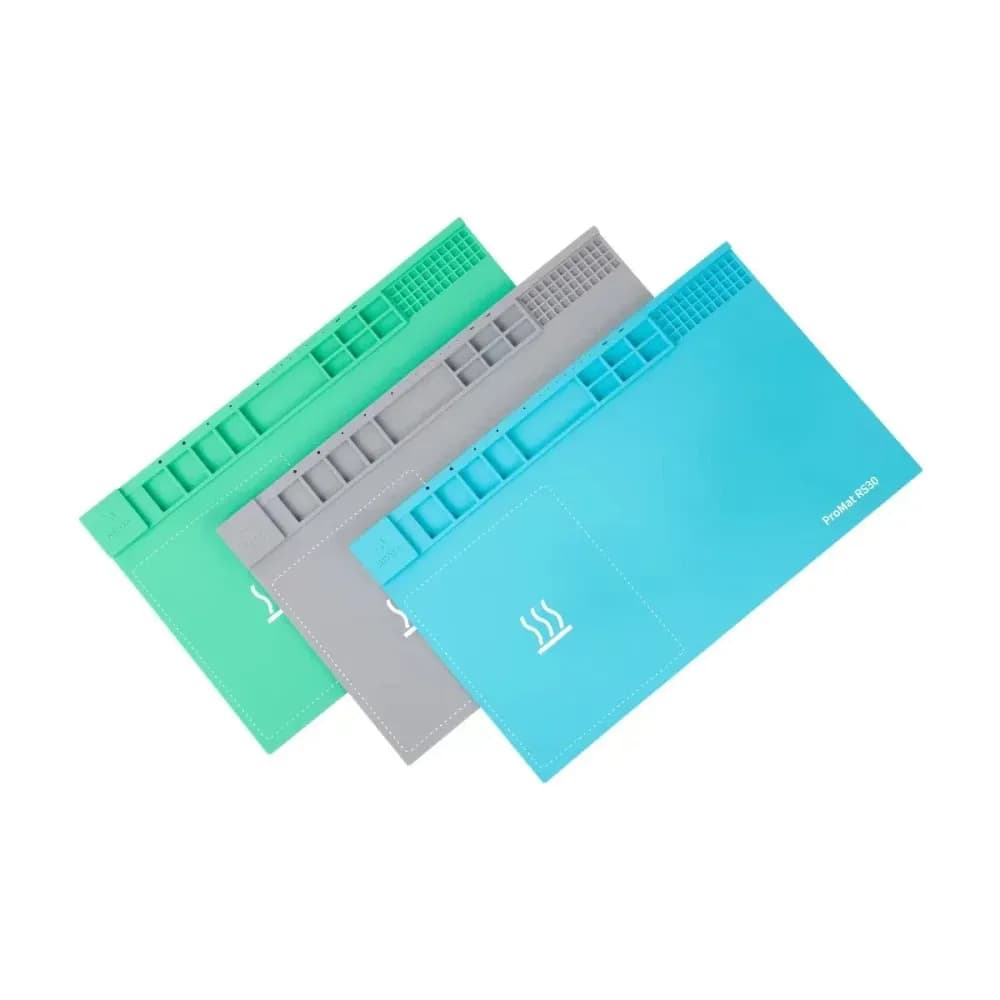

REFOX RS30 ESD Heat Mat

Separating a back cover usually means a heating plate on one side of the bench and a mat on the other. The REFOX RS30 combines them: a 280 × 450 × 5 mm silicone ESD mat with built-in heating up to 100°C.

The listing describes temperature control, magnetic storage for components and a design for back cover separation, screen removal and soldering. It runs from a DC 24 V 2 A supply and weighs 850 g. Colors are green, blue and grey.

When the RS30 helps

• A cracked screen whose adhesive won't release cold.

• A back cover that needs gentle, even warming before prying.

• Static damage risk on an ordinary rubber mat.

• Small parts that go missing between steps.

Heat sensibly

Use the lowest temperature that softens the adhesive, and let the panel warm through rather than rushing. Remember that the battery sits close to the back glass, so don't overheat the phone.

The listing doesn't say whether the 24 V power supply is included or which plug it uses, so check before ordering. It also mentions a utility patent without detail.
