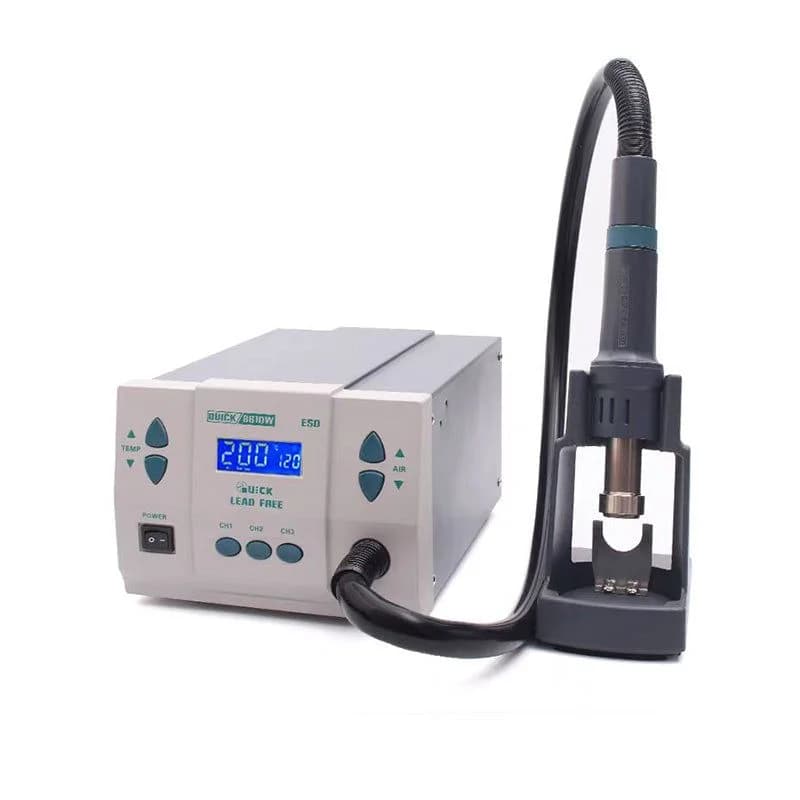

QUICK 861DW Hot Air Gun
QUICK · SKU QK10001-1
$265.00
per unit| Quantity | Unit price | Saving |
|---|---|---|
| $265.00 | ||
| $251.75 | −5% | |
| $238.50 | −10% |
Selected SKU QK10001-1
- Ships from Shenzhen, China. Check rates for your country
- No sales tax added at checkout
- Shipping & returns
- Ask about fit before ordering
Shipping weight 5 kg
Details
Switching between a small capacitor and a large CPU means changing heat and airflow over and over. The QUICK 861DW is a 1000 W hot air station with three preset channels, so you can store settings and swap between them with one press.
The listing gives a 100–500°C range, airflow from level 1 to 120 with a brushless fan, closed-loop temperature control, auto sleep when the handle sits in its holder, and automatic cooling to protect the heater. It comes with 4.4, 6.4 and 8.4 mm nozzles. The unit is 188 × 245 × 135 mm and about 3.9 kg.
Jobs the 861DW handles
A failed PMIC, baseband or charging IC on a phone board.
Cold or cracked solder joints on multilayer boards.
A damaged QFN or BGA package that needs replacing.
Laptop GPU or power IC rework.
Using the presets
Set one channel low for small parts, one mid-range for ICs and one high for shields or large chips. Confirm each preset with a thermocouple once.
Choose the EU 220 V or US 110 V version for your mains supply.
Specifications
| Brand | QUICK |
|---|---|
| Model | 861DW |
| Condition | New |
| Product type | Hot air rework station |
| Power | 1000 W |
| Temperature range | 100–500°C |
| Airflow | Levels 1–120, brushless fan |
| Presets | 3 channels |
| Nozzles | 4.4, 6.4, 8.4 mm |
| Size | 188 × 245 × 135 mm |
| Weight | Approx. 3.9 kg |
| Plug/voltage options | EU 220 V, US 110 V |
Questions
What's the temperature range?
100 to 500°C.
Does it sleep when idle?
Yes, when the handle is placed in its holder.
Which nozzles are included?
4.4, 6.4 and 8.4 mm.
