Machine
QUICK 857DW+ Rework Station
QUICK · SKU SS10019
$96.32
per unit| Quantity | Unit price | Saving |
|---|---|---|
| $96.32 | ||
| $91.50 | −5% | |
| $86.69 | −10% |
- Ships from Shenzhen, China. Check rates for your country
- No sales tax added at checkout
- Shipping & returns
- Ask about fit before ordering
Shipping weight 2.7 kg
Details

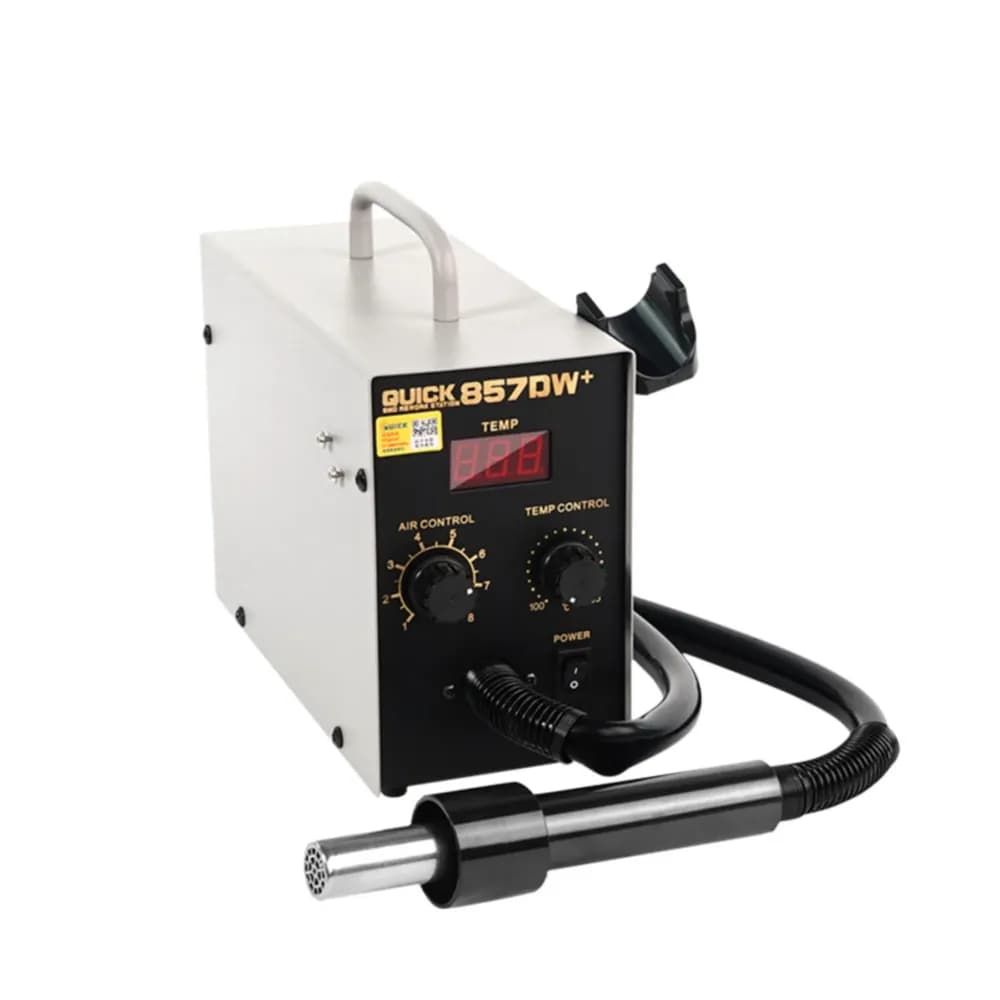

A single 0201 capacitor can vanish under too much air. The QUICK 857DW+ is a hot air rework station from QUICK's 857 series, intended for phone motherboard and PCB work where small parts sit close together.
The listing describes powerful, stable hot air, precise adjustable temperature and airflow and fast heat-up, for ICs, SMD components and connectors. It doesn't state wattage, temperature range or the nozzles included.
When the 857DW+ is useful
Tiny capacitors or resistors that failed or cracked.
A damaged connector beside other small parts.
A short traced to a single component.
An IC that has to come off without disturbing its neighbors.
Working around small parts
Lower the airflow first, then raise the temperature as needed. Use the smallest nozzle that covers the part and add plenty of flux, which helps heat flow evenly and keeps parts from drifting.
Hold neighbors in place with Kapton tape if they're very close. The listing gives no technical figures, so check the manual for exact settings. Practise on a scrap board until you can lift a single capacitor cleanly without moving the parts around it.
Specifications
| Brand | QUICK |
|---|---|
| Model | 857DW+ |
| Condition | New |
| Product type | Hot air rework station |
| Temperature | Adjustable (range not stated) |
| Airflow | Adjustable |
Questions
Is it good for tiny SMD parts?
Yes, with low airflow and a small nozzle.
What's the temperature range?
Not stated in the listing.
Which nozzles come with it?
The listing doesn't say.
