Machine
QUICK 857 Pro Rework Station
QUICK · SKU SS10020
$114.07
per unit| Quantity | Unit price | Saving |
|---|---|---|
| $114.07 | ||
| $108.37 | −5% | |
| $102.66 | −10% |
- Ships from Shenzhen, China. Check rates for your country
- No sales tax added at checkout
- Shipping & returns
- Ask about fit before ordering
Shipping weight 2.2 kg
Details

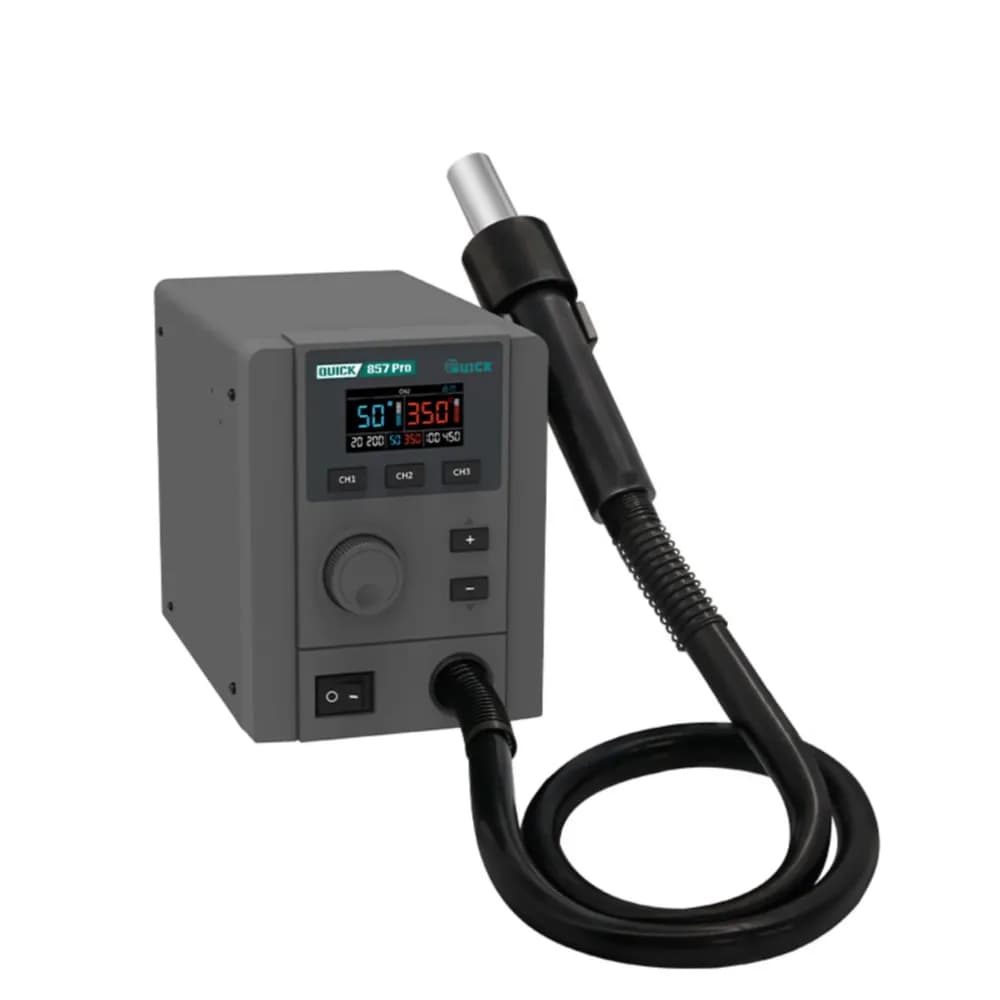

Replacing an FPC connector is one of the most common board jobs, and one of the easiest to get wrong with too much air. The QUICK 857 Pro is a hot air rework station from QUICK's 857 line for this kind of phone motherboard work.
The listing describes powerful hot air, precise temperature control, stable adjustable airflow and fast heat-up, for IC removal, SMD replacement, connector removal and soldering. It doesn't list wattage, temperature range or nozzles.
When the 857 Pro gets used
A torn or damaged FPC connector on a phone board.
A connector with a broken pin after a forced cable.
A charging IC that fails after a short.
Small passives lifted or cracked by a drop.
Connector removal step by step
Mask the area around the connector with Kapton tape, especially plastic parts. Add flux, heat with a small nozzle and modest airflow, and lift the connector with tweezers as soon as the solder flows. Clean the pads with wick before fitting the new part.
Check the 857 Pro manual for its temperature range and settings, as the listing doesn't give them.
Specifications
| Brand | QUICK |
|---|---|
| Model | 857 Pro |
| Condition | New |
| Product type | Hot air rework station |
| Temperature | Adjustable (range not stated) |
| Airflow | Adjustable |
Questions
Can it replace FPC connectors?
Yes, connector removal is a listed use.
What's the power rating?
The listing doesn't say.
Which nozzles are included?
Not stated in the listing.
