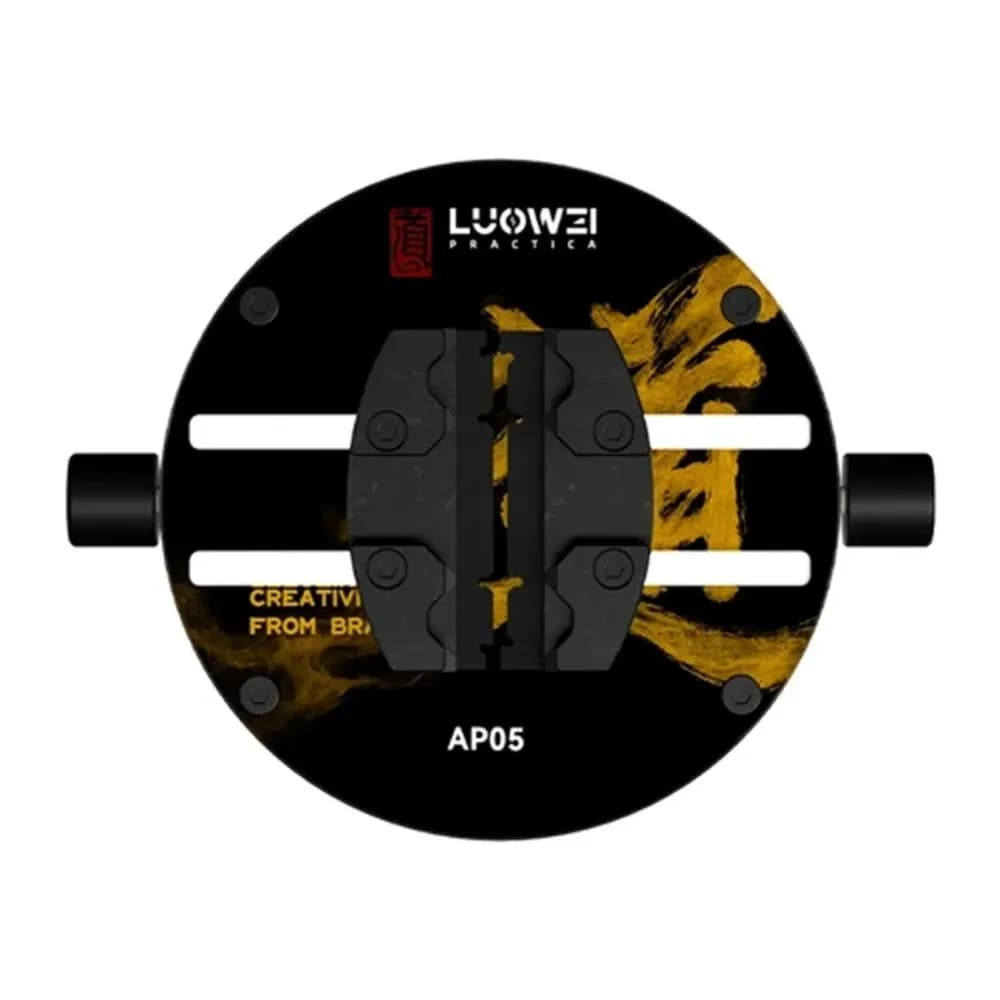

LUOWEI AP05 DAO Dual-Axis Motherboard Fixture

Name: LUOWEI AP05 DAO Dual-Axis Motherboard Fixture
Brand: LUOWEI
SKU: LW10098
Price: 16 USD

LUOWEI · SKU LW10098

$16.00

per unit

Volume pricing
Quantity	Unit price	Saving
	$16.00
	$15.20	−5%
	$14.40	−10%

Ships from Shenzhen, China. Check rates for your country
No sales tax added at checkout
30-day returns on unused parts. Details
Ask about fit before ordering

Shipping weight 0.4 kg

Details

Working on the side of a chip, or reaching under a shield edge, is easier when the board tilts toward you. The LUOWEI AP05 DAO is a dual-axis fixture that lets you set that angle.

The listing describes a metal frame, a clamp that fits several board sizes and a non-slip, heat-resistant design for hot air use. Its listed packed size is 14 x 9 x 3 cm at 350 g gross.

Board jobs for the AP05

Joints on a connector side that are cracked.
A chip that failed and needs removal at an angle.
Shorted parts close to a tall component.
Corroded pins that need brushing clean.

Angle tips

Tilt only as far as you need, then lock both axes. Keep the heavier side of the board low so it can't slip when hot.

The listing doesn't explain how the AP05 DAO differs from the AP06 FO. Compare the photos to choose, or pick the D3 FA if you only need flat clamping. Wipe flux from the clamp jaws so they grip evenly.
