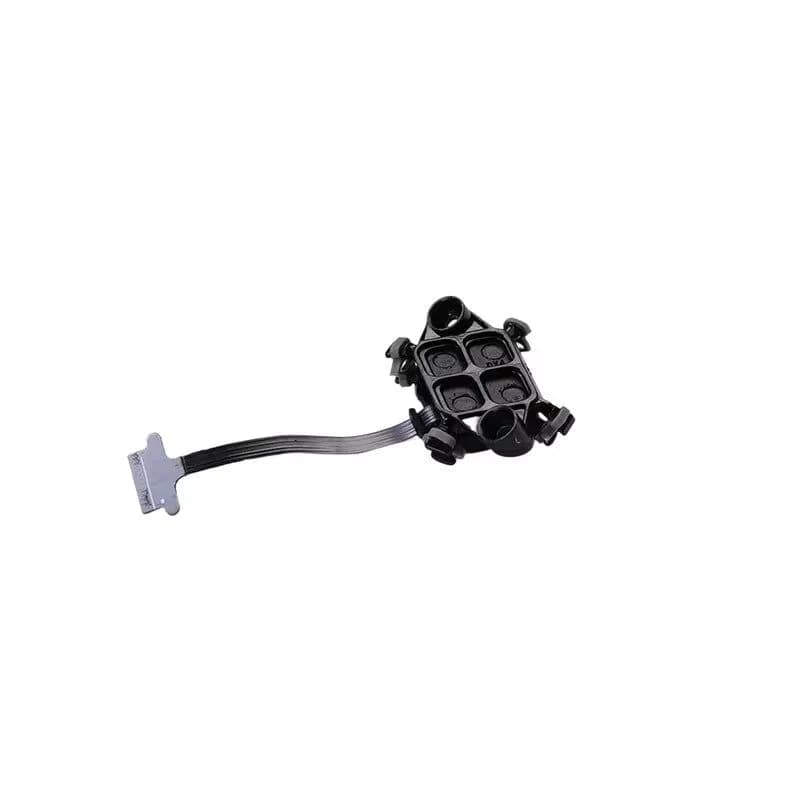

DJI Mini 5 Pro IMU Module

$43.40

per unit

Volume pricing
Quantity	Unit price	Saving
	$43.40
	$41.23	−5%
	$39.06	−10%

Ships from Shenzhen, China. Check rates for your country
No sales tax added at checkout
30-day returns on unused parts. Details
Ask about fit before ordering

Shipping weight 0.05 kg

Compatible with 1 model

Match the model number printed on the device (Settings → About, or on the back) before ordering.

DJI Mini 5 Pro

Details

After a tumble off a picnic table, a Mini 5 Pro takes off with a lean and drifts steadily to one side, and DJI Fly keeps asking for IMU calibration. Calibrating helps for a flight or two, then the warning returns. That pattern points to a damaged IMU rather than a one-off sensor glitch.

This IMU module is listed for the DJI Mini 5 Pro. It measures orientation, acceleration and angular velocity for the flight controller. We list it as aftermarket, since the maker isn't identified.

Mini 5 Pro IMU warning signs

Drift or a lean in a calm hover.
IMU calibration failures or warnings that return.
Abnormal attitude errors after a fall.

Calibrate, then replace

Run the IMU calibration on a flat surface at room temperature first. If the problem returns, replace the module, mounting it in exactly the original orientation, then calibrate the IMU and compass before a low test hover. A drone this new may still be under warranty or DJI Care Refresh, so check before opening it.

With a sound IMU, the Mini 5 Pro hovers level and holds its line again.
