DJI Mini 5 Pro Gimbal Roll Arm Lower Bracket (Duplicate Listing)

On the bench, a Mini 5 Pro with a leaning horizon and a healthy roll motor often turns out to have a bent roll arm lower bracket. The bracket supports the roll axis and keeps it aligned, so even a slight bend tips the camera.

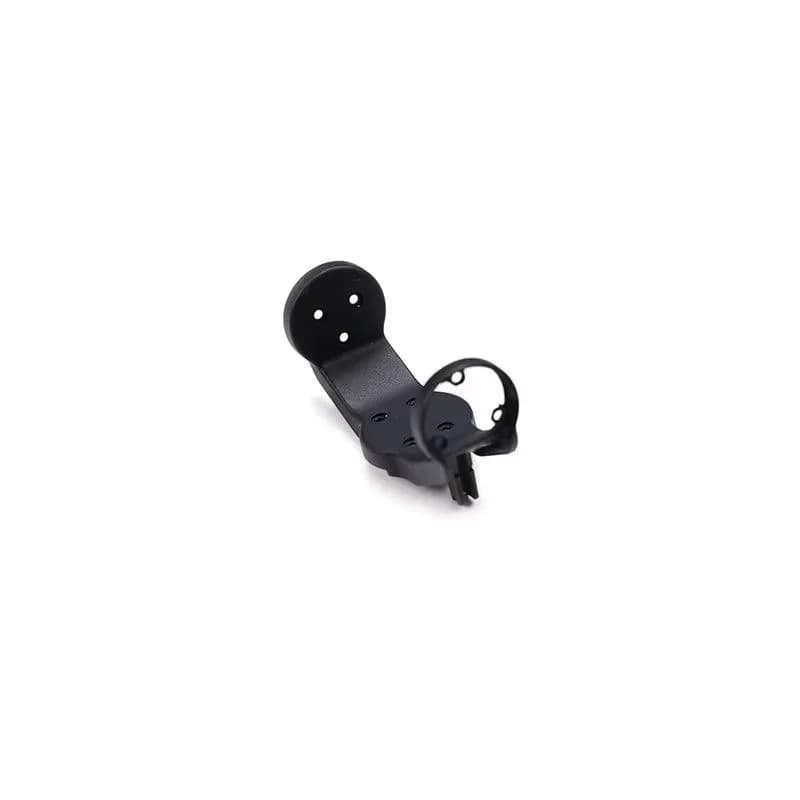

This gimbal roll arm lower bracket is listed for the DJI Mini 5 Pro and is described as lightweight. It appears to duplicate another listing with the same title and price. The maker isn't named; it's sold as aftermarket.

When the Mini 5 Pro roll bracket needs replacing

• A horizon that stays tilted after calibration.

• A cracked or bent bracket after an impact.

• Play or wobble in the roll axis.

• Roll motor strain with no motor fault found.

Bench approach

Compare the brackets side by side to confirm the bend. Keep the camera lens covered and the thin flex cables free of strain while transferring the roll motor.

Calibrate the gimbal on a level surface and check the horizon in a test clip. Replacing the bracket costs far less than a roll motor and is often the real fix.
