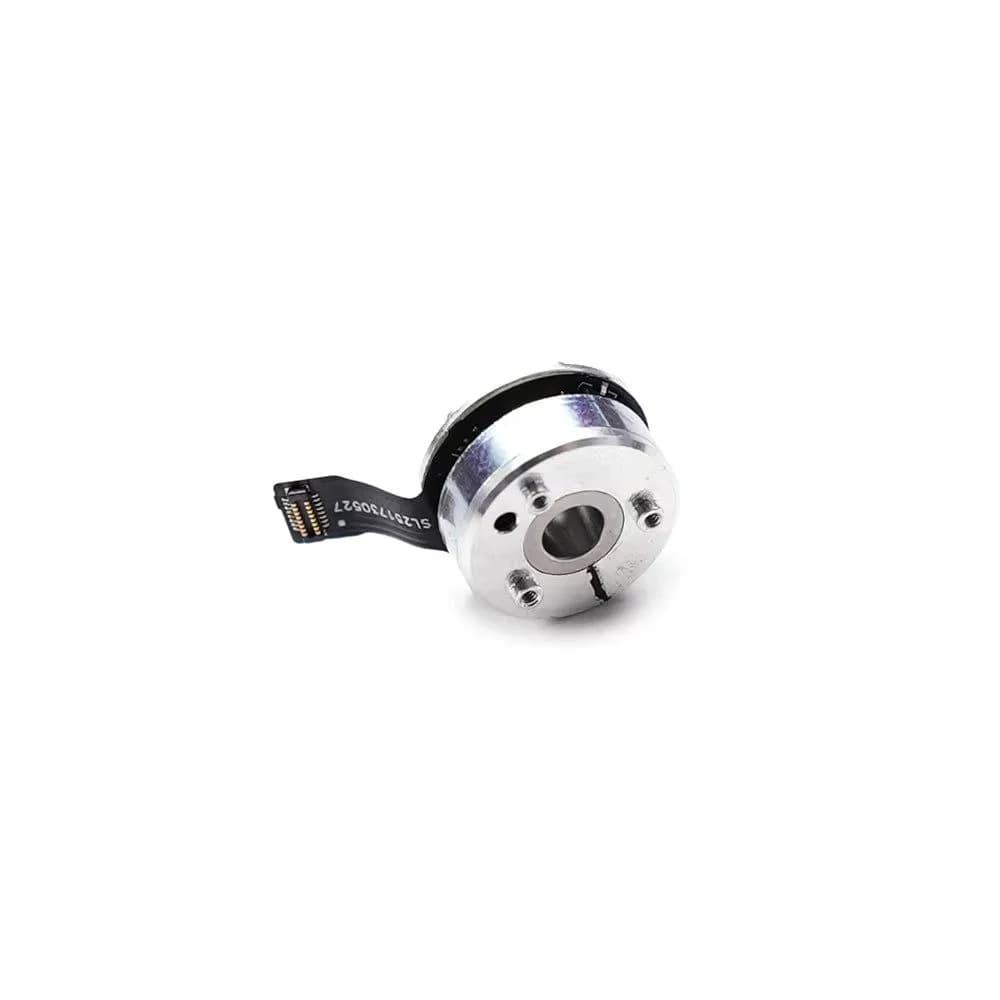

DJI Mini 5 Pro Gimbal Roll Motor

$57.00

per unit

Volume pricing
Quantity	Unit price	Saving
	$57.00
	$54.15	−5%
	$51.30	−10%

Ships from Shenzhen, China. Check rates for your country
No sales tax added at checkout
30-day returns on unused parts. Details
Ask about fit before ordering

Shipping weight 0.05 kg

Compatible with 1 model

Match the model number printed on the device (Settings → About, or on the back) before ordering.

DJI Mini 5 Pro

Details

A leaning horizon on a Mini 5 Pro doesn't always mean a new motor. A gimbal calibration, the horizon adjustment in the app or a straightened bracket can sometimes fix it. When none of those works, or the picture wobbles side to side, the roll motor is the part to replace.

This gimbal R-axis roll motor is listed for the DJI Mini 5 Pro. With no maker named and only a specification claim, we class it as aftermarket.

Roll-motor faults on the Mini 5 Pro

A tilted horizon that calibration can't correct.
Side-to-side wobble or jitter.
Roll or motor overload errors after an impact.
Grit or stiffness when turning the roll axis by hand.

Software, bracket or motor?

Start with calibration on a level surface and the horizon adjustment. Next, inspect the lower bracket for bends; a Mini 5 Pro lower bracket with limiter bearing is listed separately. If both look fine, the motor is the likely cause.

Protect the flex cables while fitting, then calibrate again and film a test clip to check the horizon.
