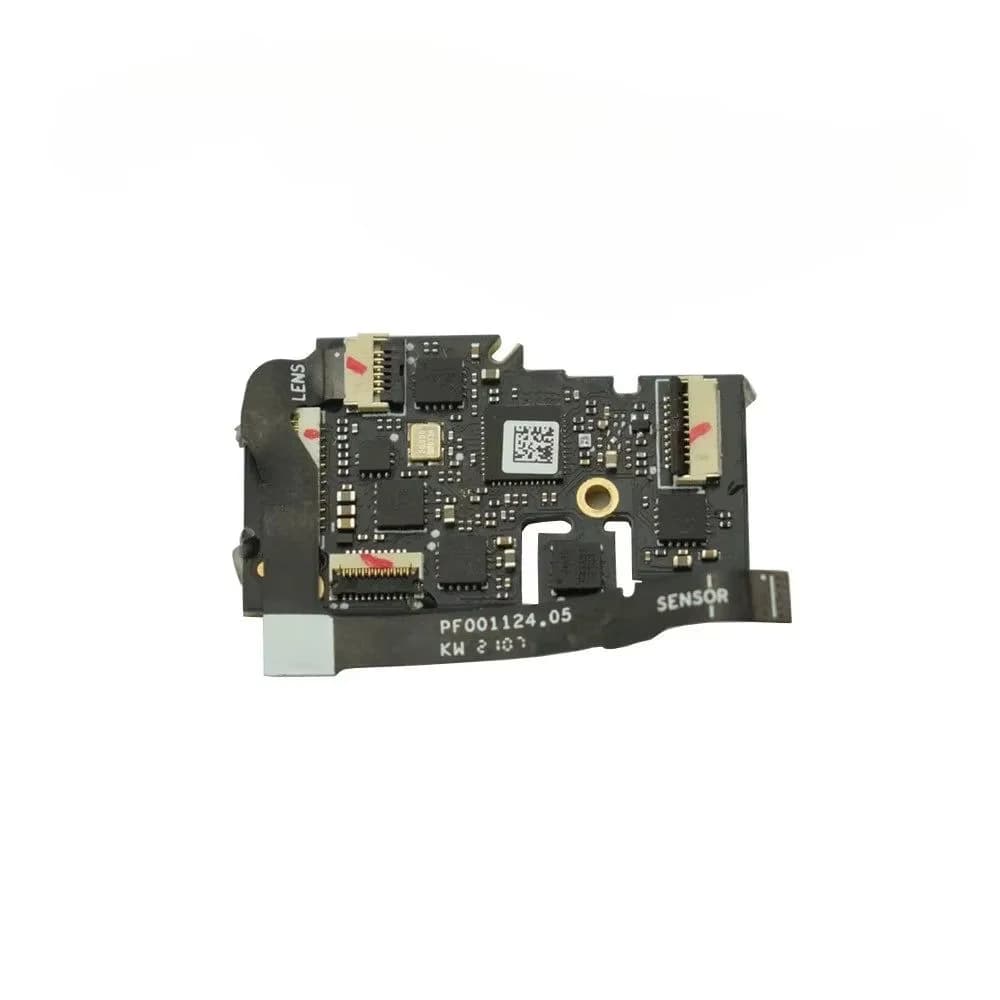

DJI Mavic 3 Gimbal Core Board

$123.38

per unit

Volume pricing
Quantity	Unit price	Saving
	$123.38
	$117.21	−5%
	$111.04	−10%

Ships from Shenzhen, China. Check rates for your country
No sales tax added at checkout
Shipping & returns
Ask about fit before ordering

Shipping weight 0.2 kg

Compatible with 1 model

Match the model number printed on the device (Settings → About, or on the back) before ordering.

DJI Mavic 3

Details

When a Mavic 3 gimbal won't communicate, the cameras give no image and new cables and motors haven't helped, the gimbal core board is next on the list. It's the circuit board in the gimbal that handles gimbal control and camera communication.

This gimbal core board is listed for the DJI Mavic 3. The listing names no maker, so it's sold as aftermarket.

Faults that point to the Mavic 3 core board

Gimbal communication errors that persist after cable replacement.
Camera control failures or no camera detected.
Visible corrosion or burn marks on the board.
Faults following moisture exposure or an electrical short.

Bench approach

Rule out the cheaper items first: the signal flex, motors and connectors. Handle the board with ESD protection and by its edges, and seat every connector fully.

The listing notes that some drone parts may need a programmer or software calibration after replacement. It doesn't say whether this board does, so be prepared for that step. Once fitted, calibrate the gimbal and test both cameras and all three axes, watching for any errors that return after a few minutes of running.
